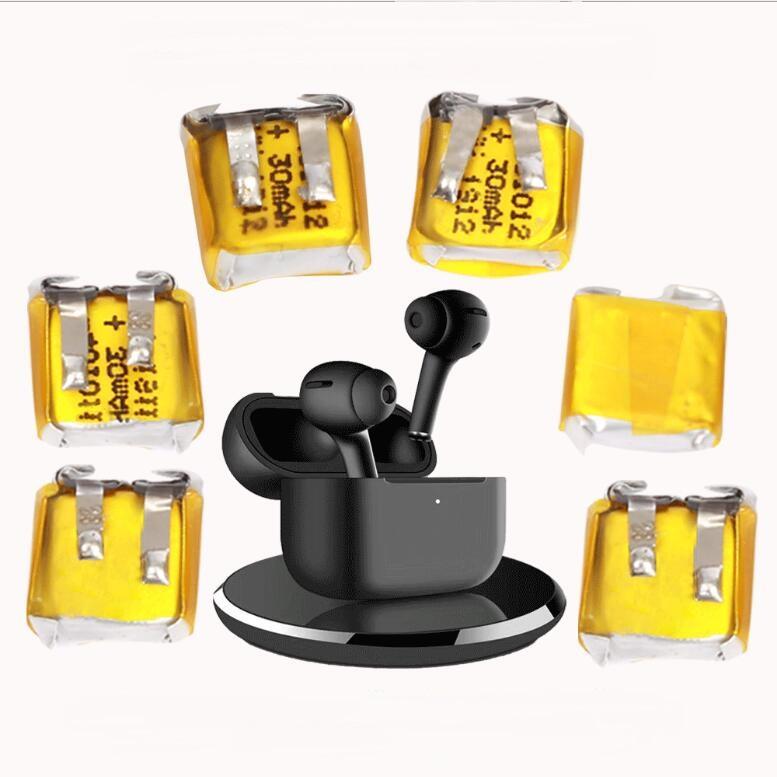

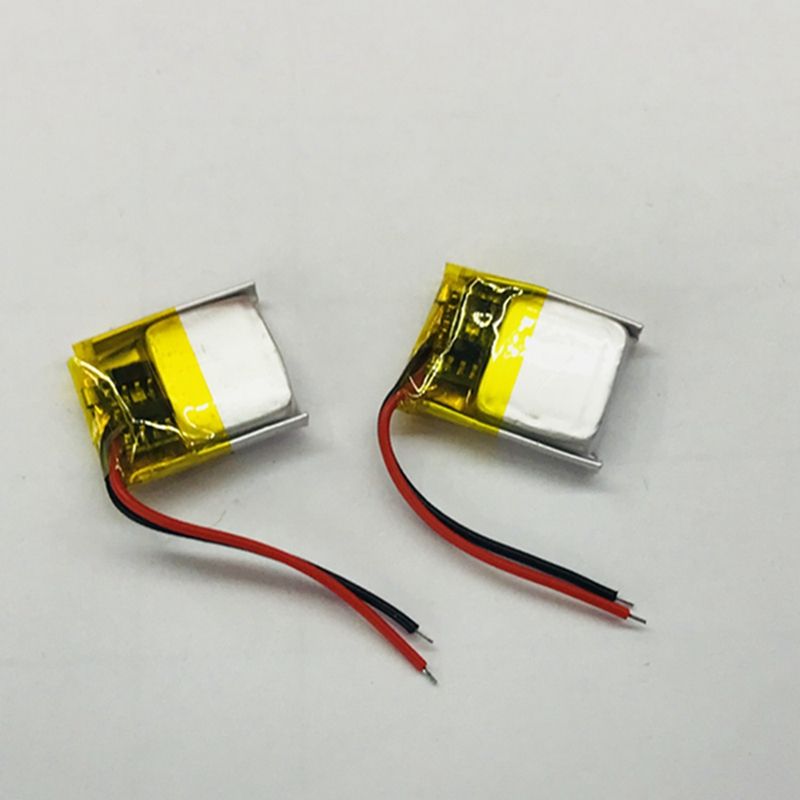

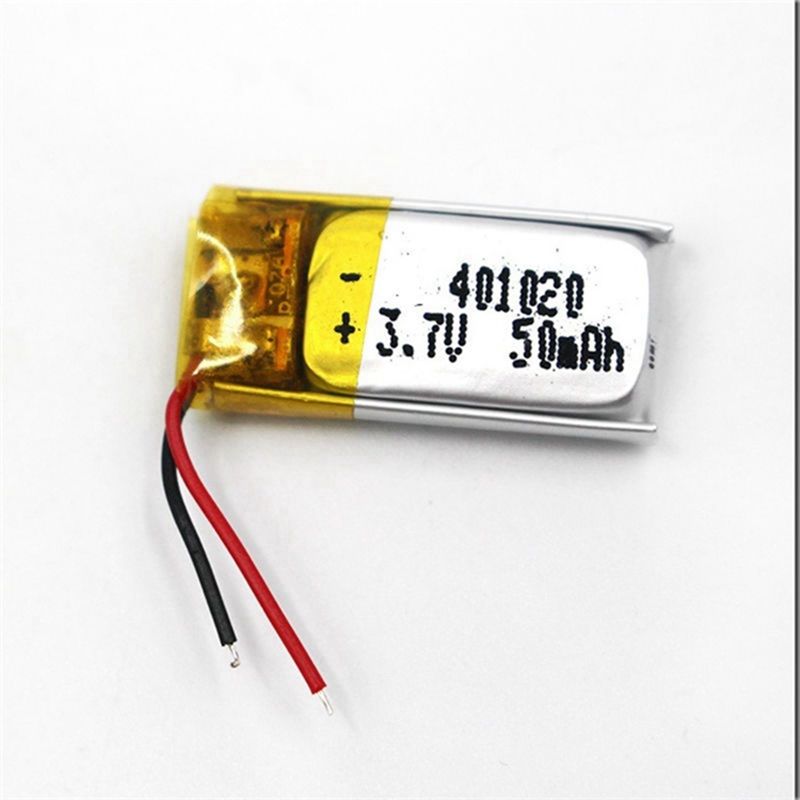

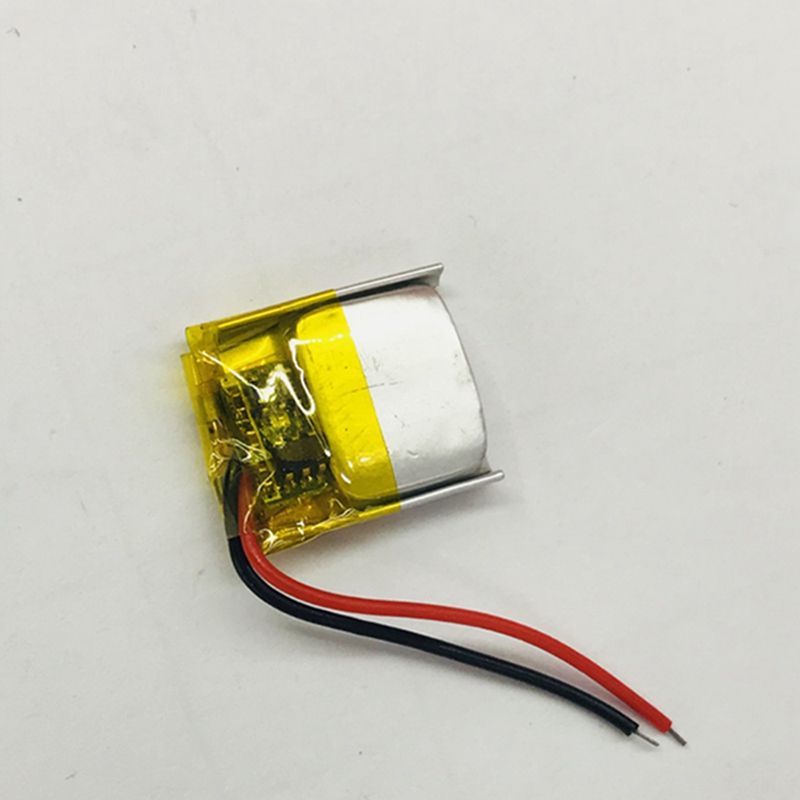

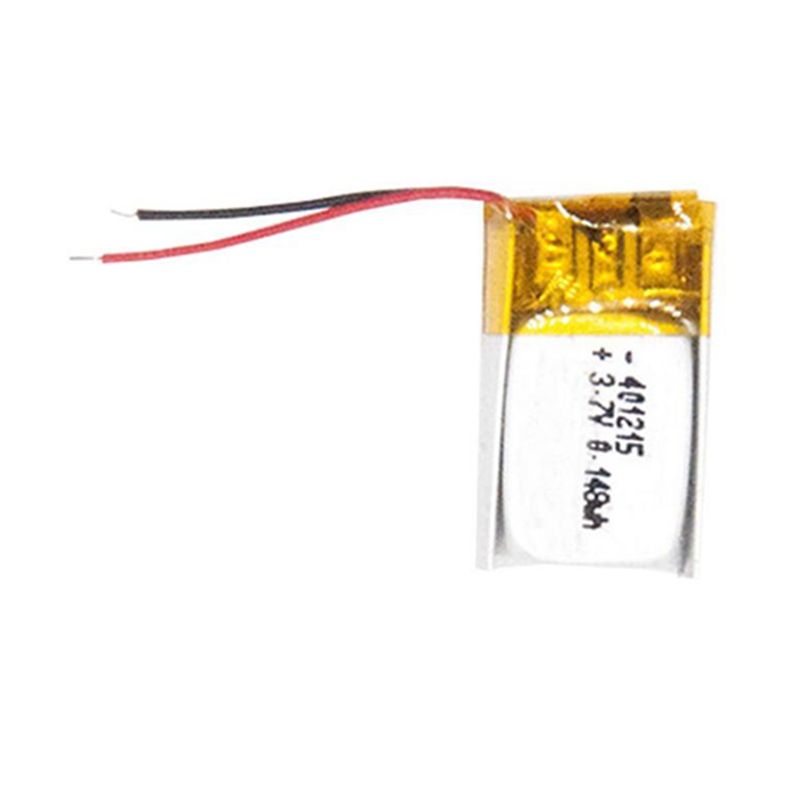

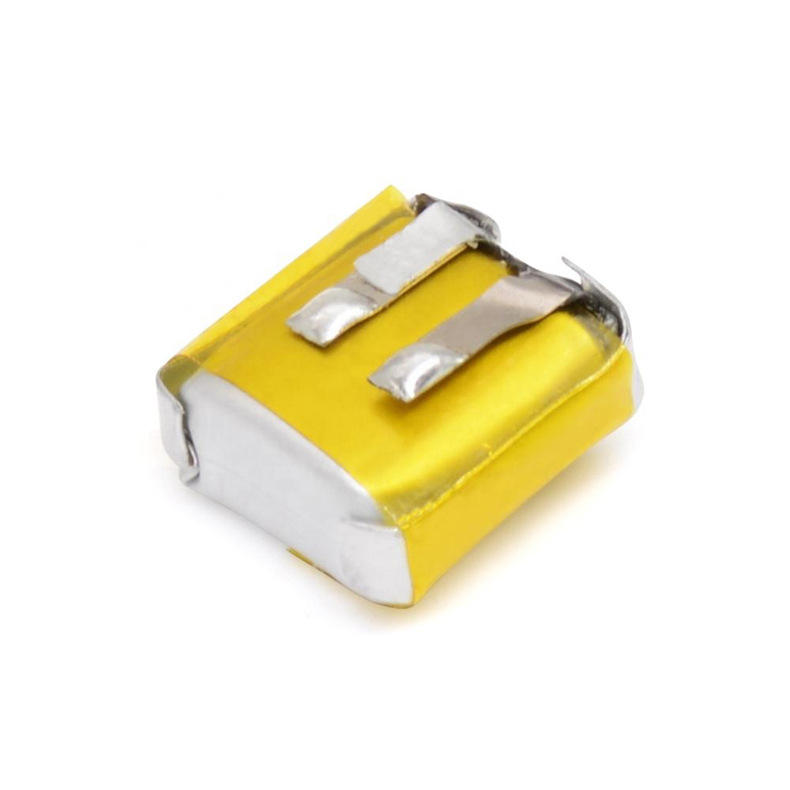

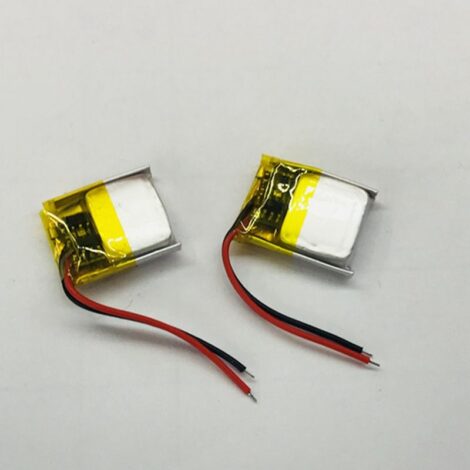

3.7v Lithium Polymer Battery

Quick Details
Warranty:1 year
Anode Material:LCO
Chargeable:Yes
Application:Consumer Electronics, wireless headphones
Battery Size:Customized
Brand Name:newhop
Certification:MSDS
Model Number:501419 701215 601522 651417 351230
Place of Origin:Guangdong, China
Weight:5g
The charging ratio:100%
The discharge rate:100%
Storage Type:lithium polymer battery
Item:3.7v 75mah lithium polymer battery
Cycle life:more than 500 times 80% DOD
Battery pack dimension:3..7mm*12.5mm*32mm
OEM/ODM Service offerd:Yes
Customized service:Offered
Standard charge:0.5c
Continuous discharge current:1C
Warranty Time:12 months
Certificates:MSDS/ROHS/REACH/UN/CE
  • Size Guide

    Size Guide

    SIZE CHEST WAIST HIPS
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44
  • Delivery Return

    Delivery

    We ship to all 50 states, Washington DC.
    All orders are shipped with a UPS tracking number.
    Always free shipping for orders over US $200.
    During sale periods and promotions the delivery time may be longer than normal.

    Return

    Thembay will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

    Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
    Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

    Help

    • Give us a shout if you have any other questions and/or concerns.
    • Email: contact@mydomain.com
    • Phone: +1 (23) 456 789
  • Ask a Question

Free

Worldwide
Shopping

100%

Guaranteed
Satisfaction

30 Days

Guaranteed
Money Back

Product Description



NO. Item 3.7v 75mah lithium polymer battery
4.1 Nominal capacity 75mAh       0.5C Discharge
4.2 Nominal voltage 3.7V
4.3 Charge current Standard Charge 0.5C
Rapid charge 1.0C
4.4 Standard Charging method 0.5C CC(constant current)charge to 4.2V,then CV

charge till charge current decline to ≤0.05C

4.5 Charging time Standard Charging
Approx 4 hours
Rapid charge
Approx 2 .5hours
4.7 Max.discharge current 2C
4.9 Discharge cut-off voltage 3.0V
4.10 Charge cut-off Voltage 4.2V ±0.08V
4.11 Initial Impedance ≤ 60momh at 1kHz AC Method
4.12  Weight Approx 10g
4.13 Operating temperature Charging 0 centi-degree~40 centi-degree
Discharging -20 centi-degree~40 centi-degree
4.14 Storage temperature -20 centi-degree~45 centi-degree
