Rechargeable Battery Pack With CE, ROHS, FCC Certifications
Quick Details
Warranty:12 months
Anode Material:NCM
Chargeable:Yes

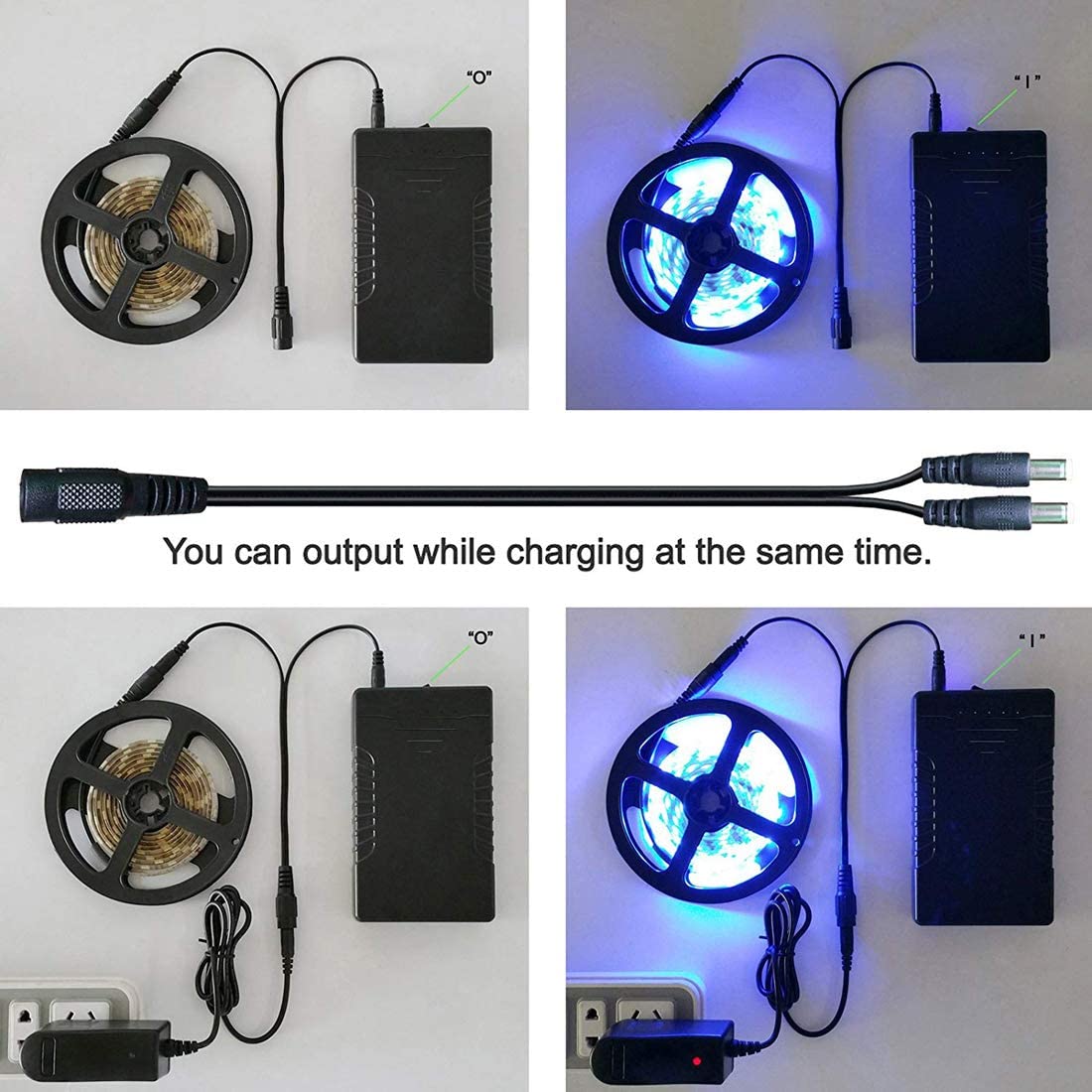

Application:Led Strip Light Products, CCTV Camera, IP Camera , Led Panel, Amplifier, Modem,Car DVR, Speaker, Mobile Phone

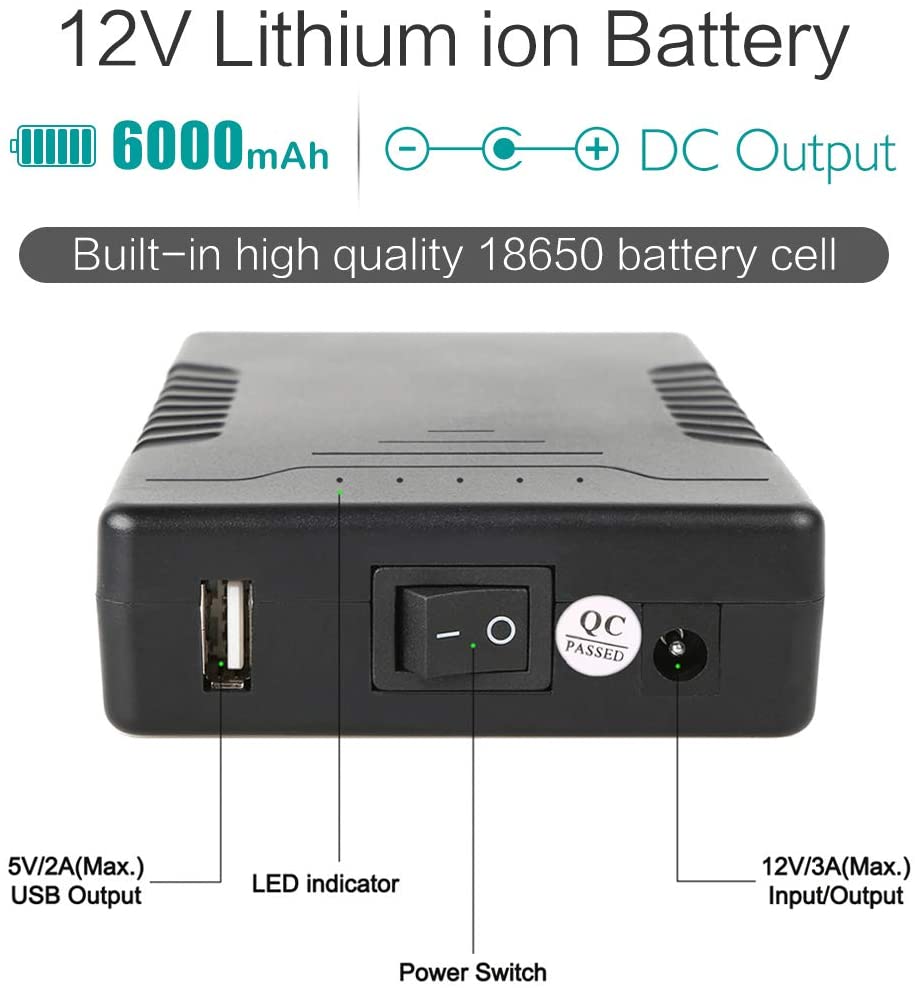

Battery Size:18650
Brand Name:TalentCell/YaBo
Certification:ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB
Model Number:YB1206000-USB
Place of Origin:Guangdong, China
Weight:Anout 380g
Components:18650 Battery
Type:Li-ion battery with PCM
Nominal voltage:11.1 Volt
Typical capacity:6000mah
Input:12.6v
Output:12V 3A DC and 5V 2A USB
Max continuous charge/discharge current:3A

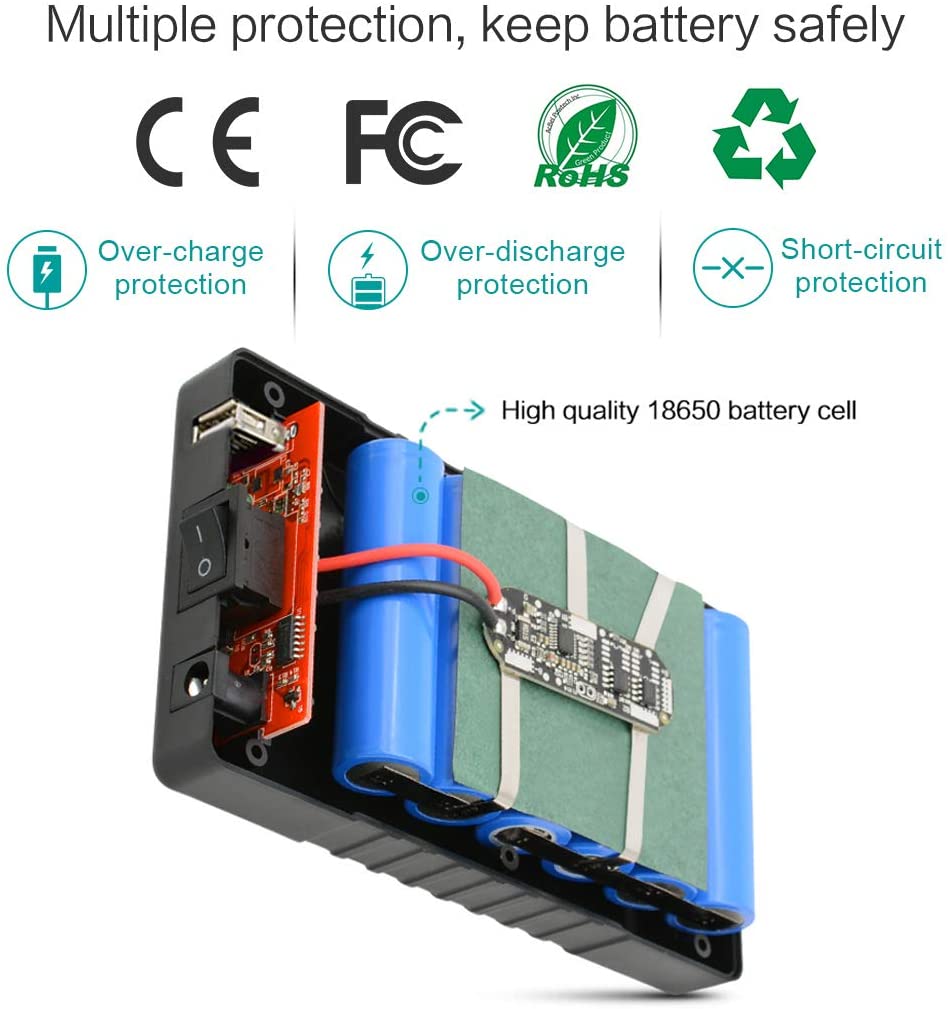

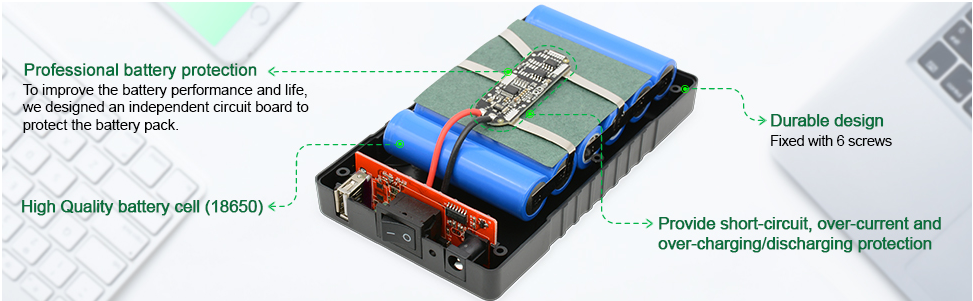

Protection:12VPCM,over-charge/discharge protection, over-heat protection
Operating temperature:-20 °C to 60 °C
Charge temperature:-0 °C to 45 °C
Products Description
|
Model
|
YB1206000-USB
|
|
Type
|
Li-ion battery with PCM
|
|
Nominal voltage
|
12 volt
|
|
Typical capacity
|
6000mah
|
|
Input
|
12.6v 1A
|
|
Out-put
|
12V 3A and 5V 2A
|
|
Max continuous charge/discharge current
|
3A(adjustable)
|
|

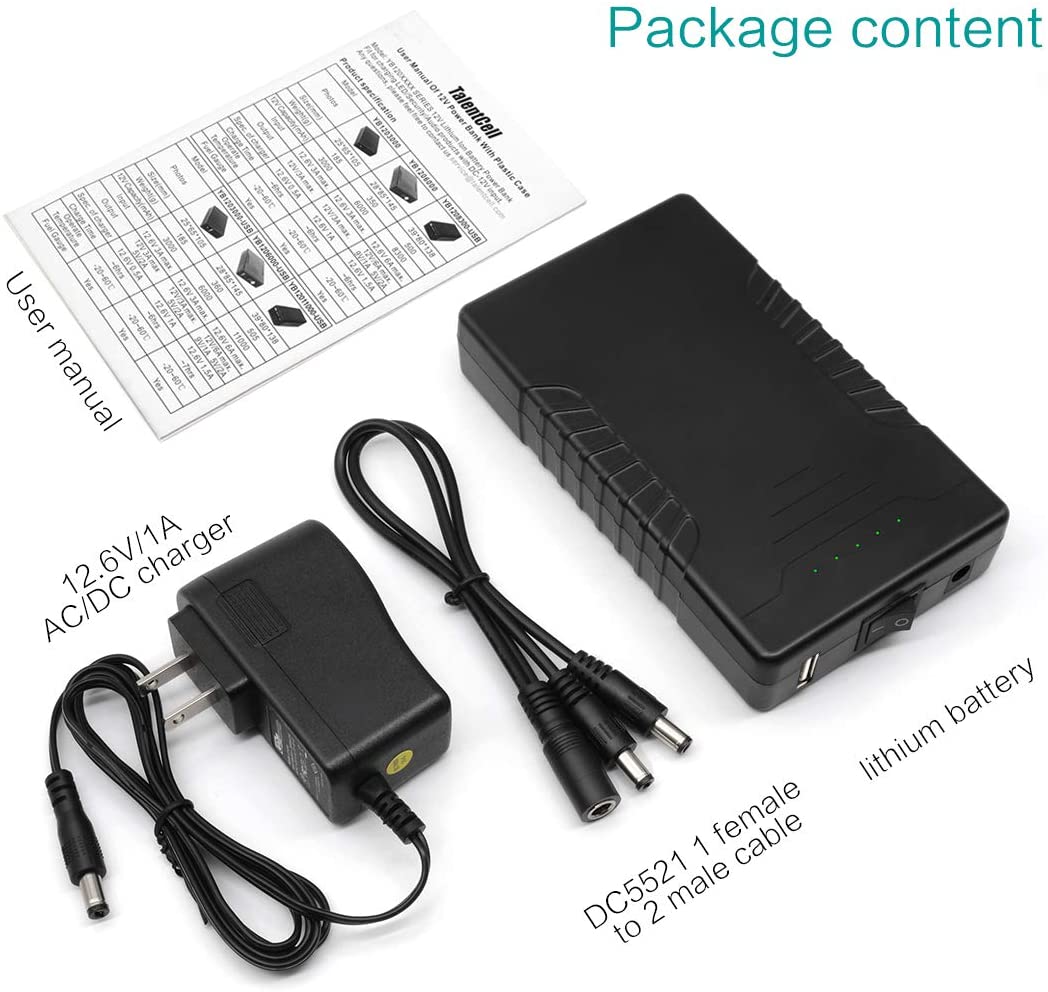

Charger Included
|
1A charger:US plug
|
|
Connectors
|
5.5*2.1mm DC jack+5.5*2.1mm DC plug
|
|
Protection
|
with PCM,over-charge/discharge protection, over-heat protection
|
|
Recharge cycle
|
More than 500 times
|
|

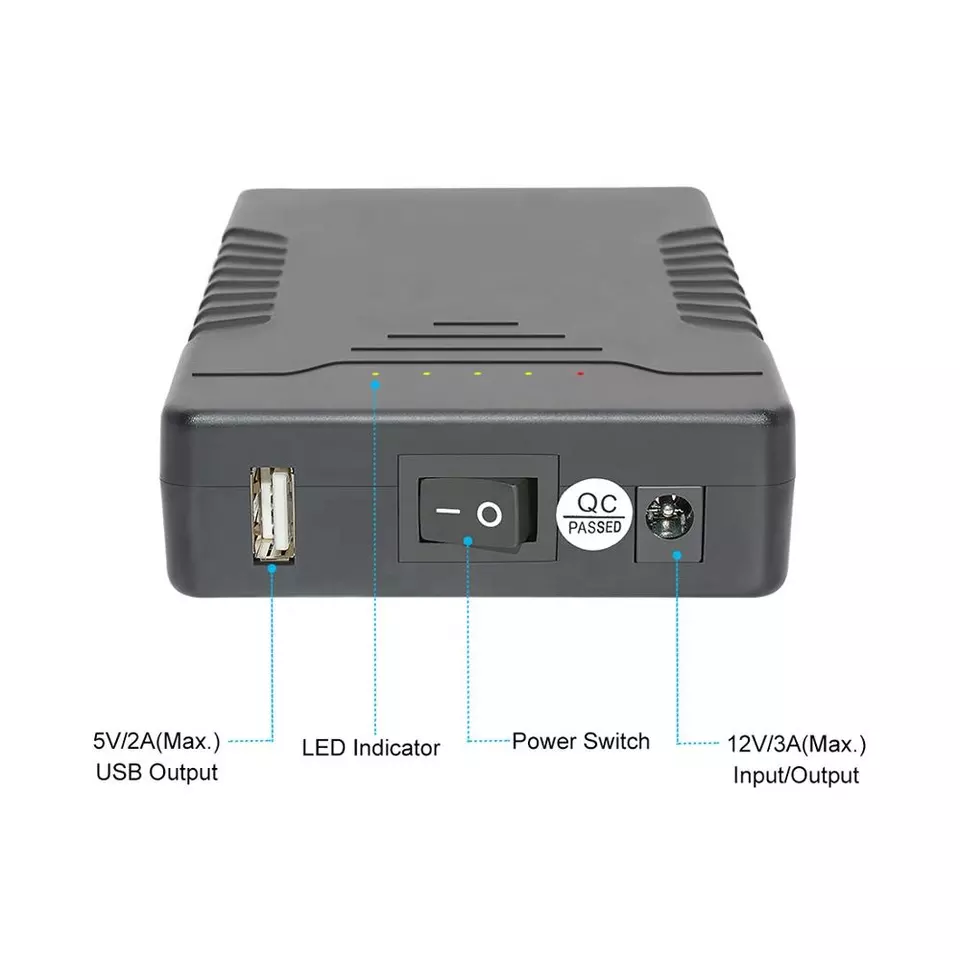

LED Indicator
|
Available
|
|
ON/OFF Switch
|
Available
|
|
Key word
|
12v battery with charger
|
|
Standard Charge Time
|
Around 5H
|
|

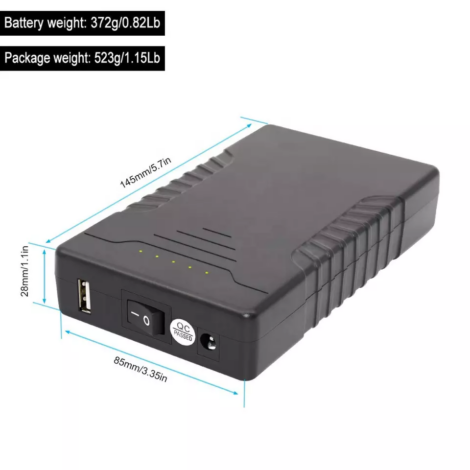

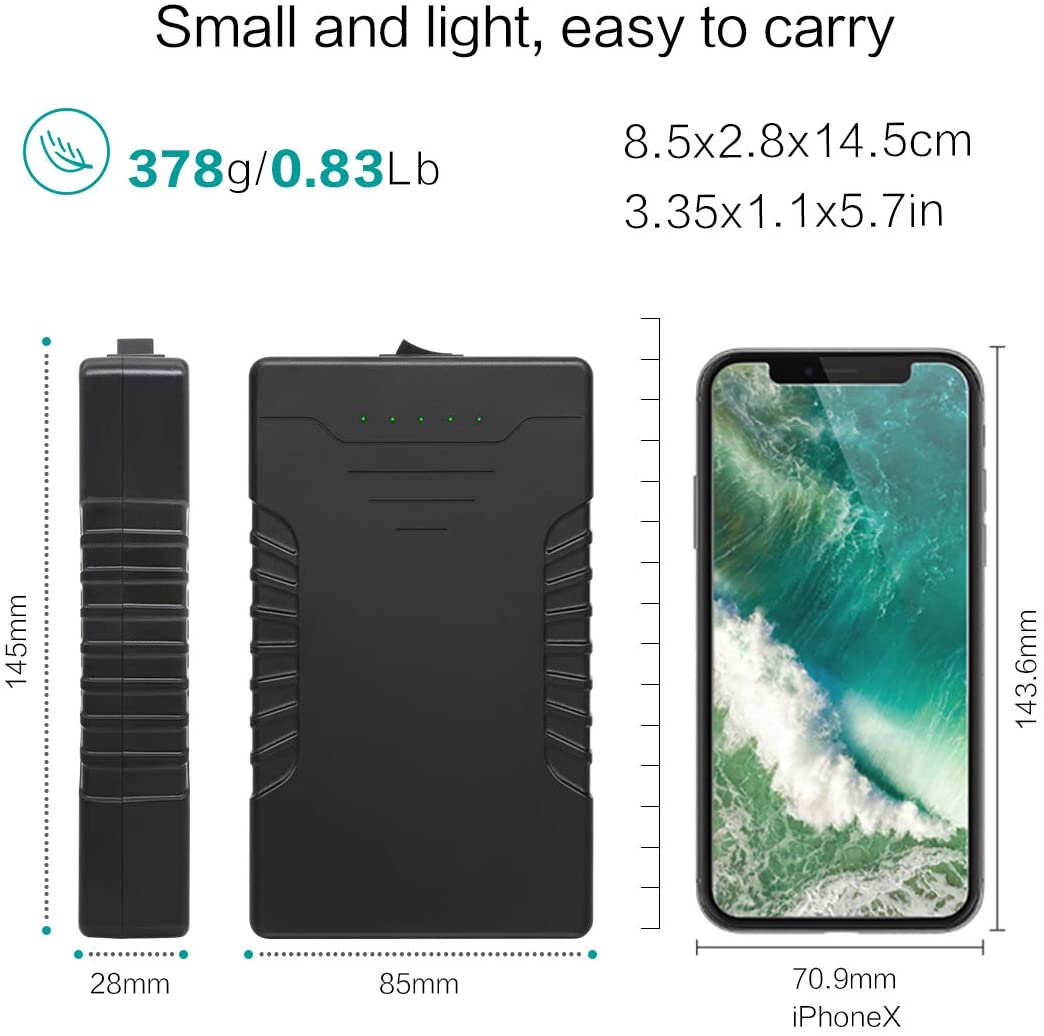

Dimension
|
28*85*148mm
|
|
Weight(approximate)
|
380g
|
|
Operating temperature
|
-20 °C to 60 °C
|
|
Charge temperature
|
-0 °C to 45 °C
|
|
Storage temperature
|
-20 °C to 45 °C
|
|
Operating humidity
|
5% to 90%,non-condensing
|
