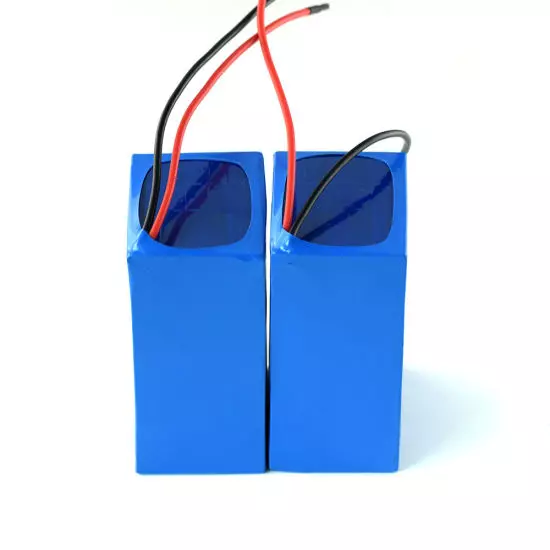

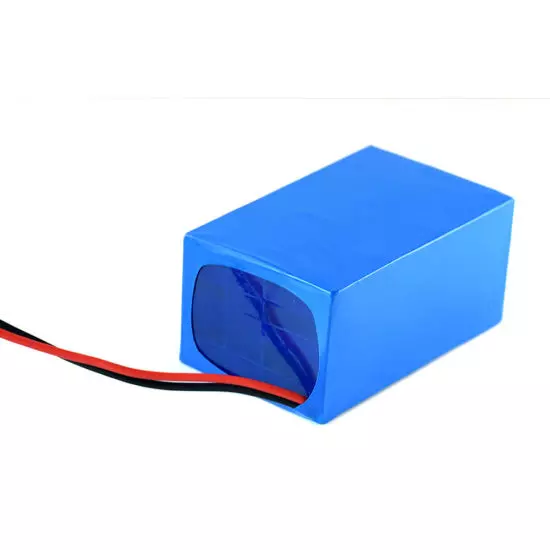

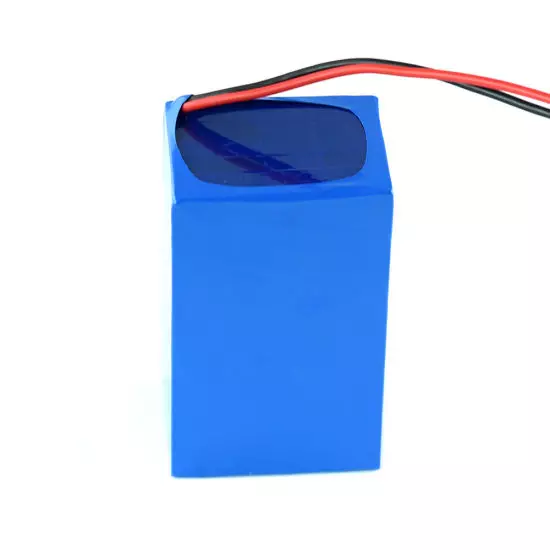

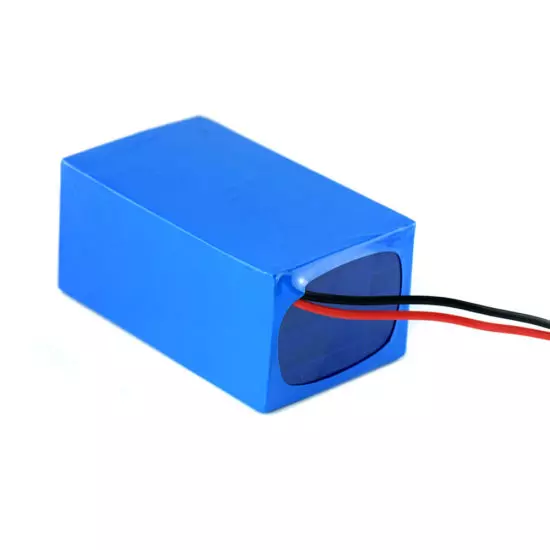

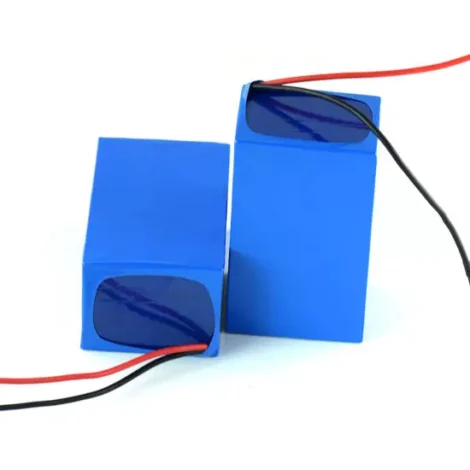

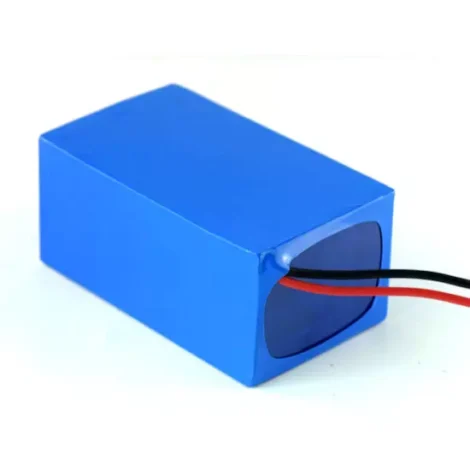

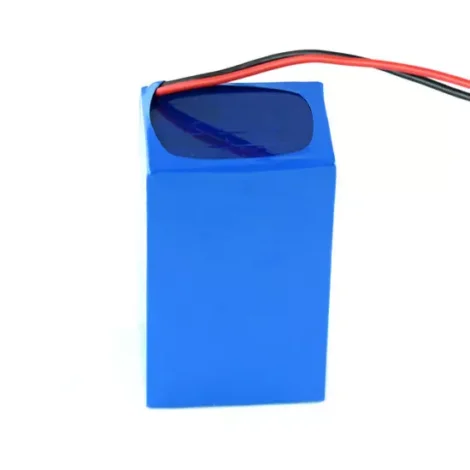

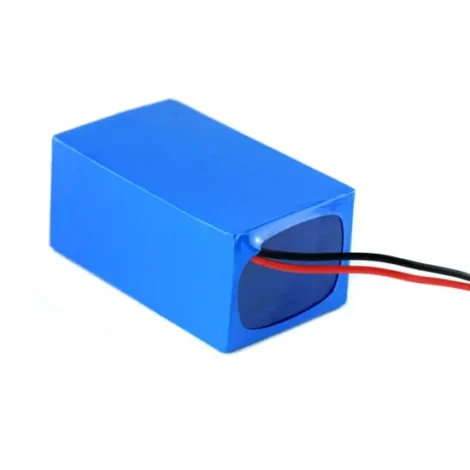

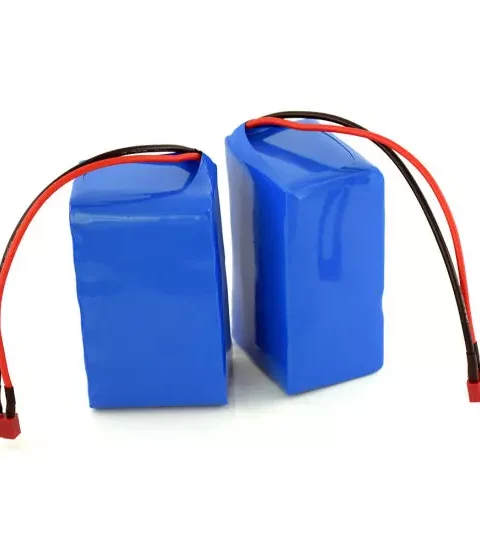

24V 10ah Lithium Battery Pack for Ebike
24V 10ah Lithium Battery Pack for Ebike
Port:Shenzhen, China
Production Capacity:1000PCS/Week
Payment Terms:T/T, Paypal
Model NO.:FB-7S4P
Rated Capacity:10ah
Standard Voltage:24V
Usage:Ebike
Electrolyte:Li-ion
Product Name:24V 10ah Lithium Battery Pack for Ebike
Dimension:137*90*70mm
Weight:About 1.5kg
Configuration:7s4p
Battery Type:18650 Li Ion
Battery Case:Wrap with PVC
-
Size Guide
Size Guide
SIZE CHEST WAIST HIPS XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 -
Delivery Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Thembay will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
- Give us a shout if you have any other questions and/or concerns.
- Email: contact@mydomain.com
- Phone: +1 (23) 456 789
-
Ask a Question
Ask a Question
24V 10ah Lithium Battery Pack for Ebike
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
24V 10Ah lithium battery pack for ebike
Specification
| Item | Parameters | ||
| Nominal Voltage | 24V | ||
| Nominal Capacity | 10±1Ah( at 0.2C discharge rate) | ||
| Discharge | normal current | 1C | |
| Max continuous current | 2C (≤5min) | ||
| cut-off voltage | 18.8V | ||
| Charge | normal charge current | 0.5C | |
| Charge mode | CC/CV with professional charger | ||
| cut-off voltage | 29.2±0.1V | ||
| Inner Resistance | Discharging Inner resistance | ≤80mΩ | |
| Charge Temperature | 0ºC~+45ºC | When the environment temperature is higher than 45ºC,please pay attention to ventilation and heat rejection. | |
| Discharge Temperature | -20ºC~+60ºC | ||
| Humidity Range | RH≤85% | ||
| Protection Function | Over charge protection,Over discharge protection,Over current protection,Balanced function | ||
| Shell Material | Blue PVC | ||
| Weight | 1.5.0±0.1kg | ||
| Dimension(L*W*H) | customized | ||
| Cycle Life | Standard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 500 cycles.( capacity retention rate≥80%) | ||
Features
Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions .
With at least More than 500times cycle life
It can run well under different temperature environment condition
No memory effects.
Suitable for electric bicycle ,electric bike,solar products,lights etc .
