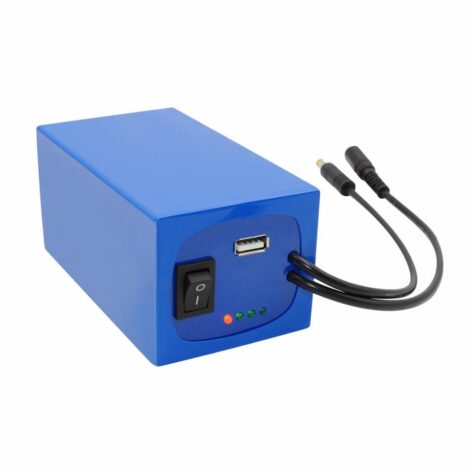

Li-ion Battery With PCM
Quick Details
- Application:LED panel, LE1
- Brand Name:YABO
- Model Number:YB1218000BP
- Nominal Capacity:18000mah
- Place of Origin:Guangdong, China
- Weight:1130g
- Type:Li-Ion, Li-ion battery with PCM
- Composed Type:Series and parallel
- Components:wholesale 18650 lithium battery
- Size:59*70*172mm
- Voltage:12v
- item:DC 12v 18000mah 12 volt lithium ion battery
- Capacity:18000mah
- Nominal voltage:12 volt
- Input:12.6 v
- Output:12.6v-9v
- Max continuous charge/discharge current:2.5A
- Recharge cycle:More than 500 times
- Operating temperature:-20 °C to 60 °C
- Charge temperature:-0 °C to 45 °C
Specification and Paraments
| model | YB1218000BP |
| type | Li-ion battery with PCM |
| Nominal voltage | 12 volt |
| Typical capacity | 18000 |
| Input | 12.6 v |
| Out-put | 12.6-9V |
| Max continuous charge/discharge current | 2.5A(adjustable) |
| Charger Included | 2A charger:US plug/EU plug/UK plug |
| Connectors | 5.5*2.1mm DC jack+5.5*2.1mm DC plug |
| Protection | 12VPCM,over-charge/discharge protection, over-heat protection |
| Recharge cycle | More than 500 times |
| LED Indicator | Available |
| ON/OFF Switch | Available |
| Key word | 12v battery with charger |
| Standard Charge Time | Around 5H |
| Dimension | 59*70*172 |
| Weight(approximate) | 1130g |
| Operating temperature | -20 °C to 60 °C |
| Charge temperature | -0 °C to 45 °C |
| Storage temperature | -20 °C to 45 °C |
| Operating humidity | 5% to 90%,non-condensing |
