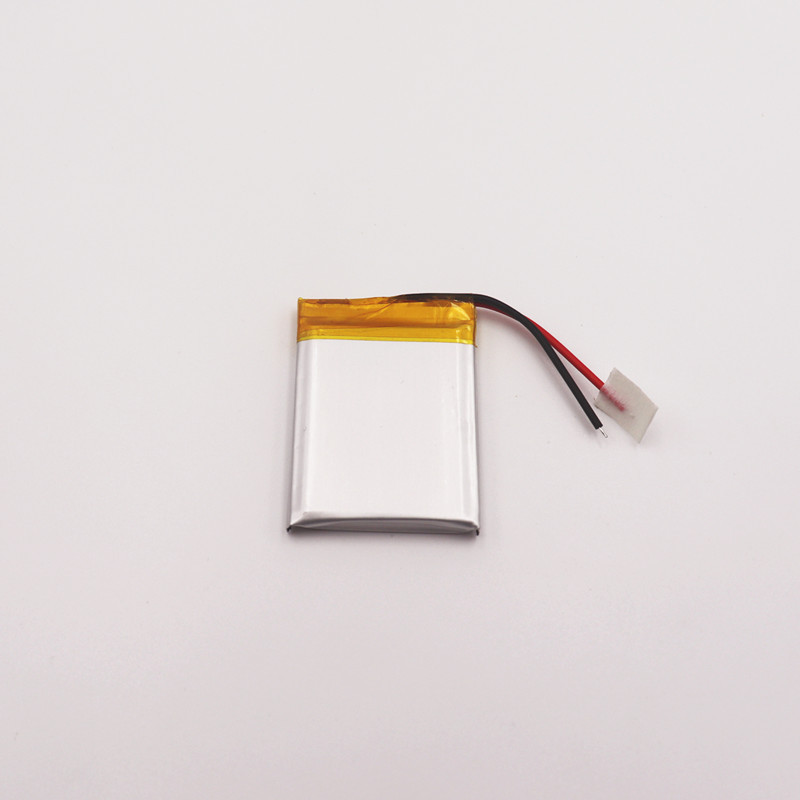

Small Size Lithium Polymer Battery
Small Size Lithium Polymer Battery
Quick Details
- Warranty:1 year
- Application:Consumer Electronics, 3D glasses/Watch/wilreless keyboard
- Battery Size:5x15x22mm
- Brand Name:newhop
- Certification:MSDS/REACH
- Model Number:501520
- Place of Origin:Guangdong, China
- Weight:10G
- The charging ratio:100%
- The discharge rate:100%
- Product name:501520 li-polymer batteries
- Cycle life:500 times 80% DOD
- OEM/ODM service:Yes
- Customized service:Yes
- Type:lipo battery
- Keywords:3.7v lipo 501520
- Standard discharging current:1C
- Standard charging current:0.5C
- Certificates:ROHS/REACH/MSDS/UN38.3
-
Size Guide
Size Guide
SIZE CHEST WAIST HIPS XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 -
Delivery Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Thembay will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
- Give us a shout if you have any other questions and/or concerns.
- Email: contact@mydomain.com
- Phone: +1 (23) 456 789
-
Ask a Question
Ask a Question
Small Size Lithium Polymer Battery
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
Specification:
| NO. | Item | Specifications |
| 4.1 | Nominal capacity | 100mAh 0.2C Discharge |
| 4.2 | Nominal voltage | 3.7V |
| 4.3 | Charge current | Standard Charge 0.5C Rapid charge 1.0C |
| 4.4 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V,then CV
charge till charge current decline to ≤0.01C |
| 4.5 | Charging time | Standard Charging Approx 5 hours Rapid charge Approx 2 .5hours |
| 4.6 | Max.charge current | Constant Current 1C Constant Voltage 4.2V 0.01 C cut-off |
| 4.7 | Max.discharge current | Constant current 1 C end voltage3.0V |
| 4.8 | Standard Discharge Current | Constant current 0.2 C end voltage3.0V |
| 4.9 | Discharge cut-off voltage | 3.0V |
| 4.10 | Charge cut-off Voltage | 4.2V |
| 4.11 | Initial Impedance | ≤180momh |
| 4.12 | Weight | Approx 10g |
| 4.13 | Operating temperature | Charging 0 centi-degree~45 centi-degree Discharging -20 centi-degree~60 centi-degree |
| 4.14 | Storage temperature | -5 centi-degree~35 centi-degree |
| 4.15 | Storage Humidity | ≤75% RH |
| 4.16 | Appearance | Without scratch,distortion,contamination and leakage |
| 4.17 | Standard environmental
condition |
Temperature 23±5 centi-degree Humidity 45-75%RH Atmospheric Pressure 86-106 Kpa |
