Rechargeable Li Ion 36 Volt Lithium Battery 13 Ah Ebike Battery Pack
Rechargeable Li Ion 36 Volt Lithium Battery 13 Ah Ebike Battery Pack
Port:Shenzhen, China
Production Capacity:20, 000PCS/Month
Payment Terms:L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:FB-3613
Rated Capacity:13ah
Standard Voltage:36V
Usage:Electric Bicycle
Electrolyte:Li-ion
Battery Cell:3.7V 2600mAh Lithium Battery
Battery Configuration:10s5p
Charge Voltage:42V
Discharge Cut off Voltage:27.5V
Max Charge Current:5A
High Safety:Built-in BMS
-
Size Guide
Size Guide
SIZE CHEST WAIST HIPS XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 -
Delivery Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Thembay will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
- Give us a shout if you have any other questions and/or concerns.
- Email: contact@mydomain.com
- Phone: +1 (23) 456 789
-
Ask a Question
Ask a Question
Rechargeable Li Ion 36 Volt Lithium Battery 13 Ah Ebike Battery Pack
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
Rechargeable li ion 36 volt lithium battery 13 ah ebike battery pack for e-bike
Specification:
| Battery cell | 3.7V 2600mAh lithium battery cell |
| Nominal voltage | 36V |
| Nominal capacity | 13Ah |
| Battery configuration | 10S5P |
| Case dimension | 367*90*90mm |
| Case material | ABS+PC |
| End of charge voltage | 42V |
| End of discharge voltage | 27.5V |
| Standard charge current | 2.6A |
| Max charge current | 5A |
| Continuous discharge current | 15A |
| Peak discharge current | 30A |
| Charge port | DC5521 |
| Case type | downtube with 4pins discharge |
| Net weight | 3.2KG |
| Charge temperature | 0~45ºC |
| Discharge temperature | -20~60ºC |
| Storage temperature | -10~45ºC |
| Warranty | one year |
| Lifecycle | 500 times |
| Charge method | CC/CV |
| BMS protection | over-charge,over-discharge,over-current and short circuit |
| Fit motor | 250W,350W,500W |
| Compatiable chargers | 42V 2A;42V 3A |

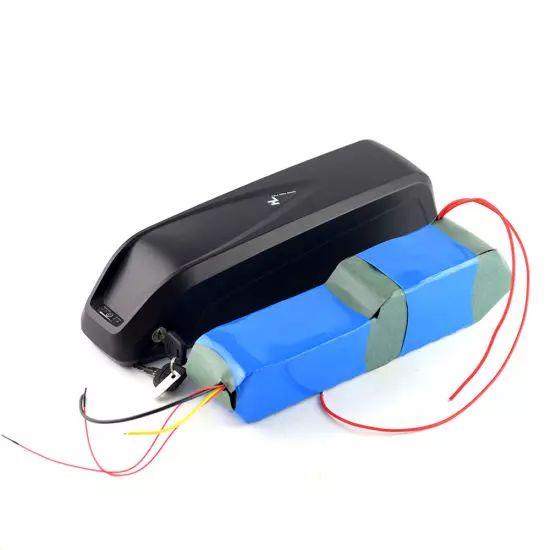

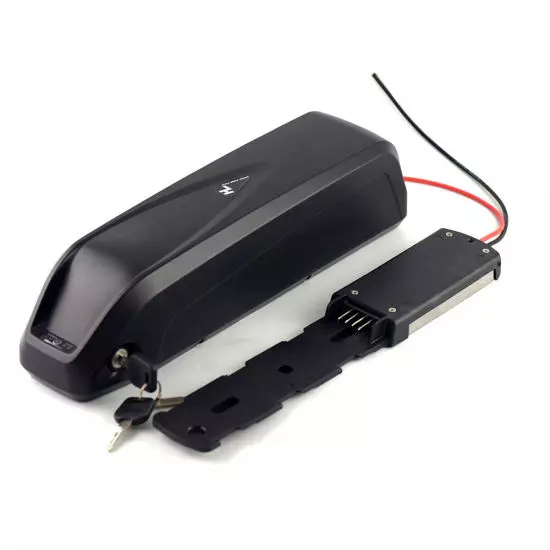

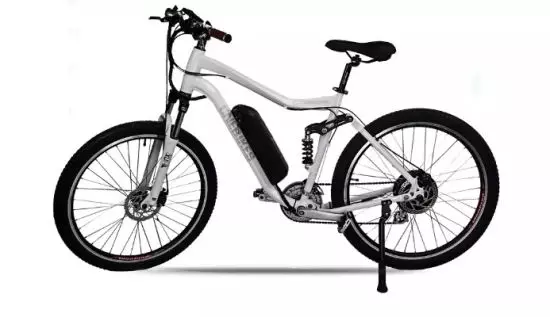

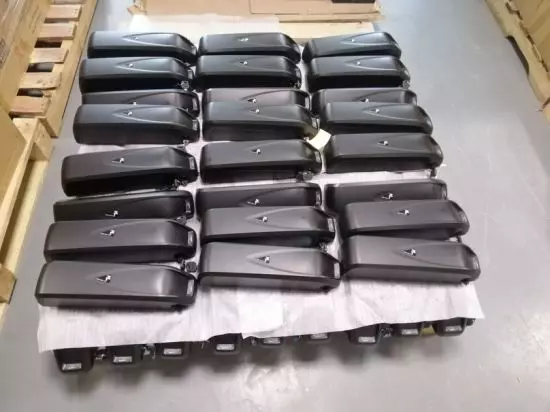

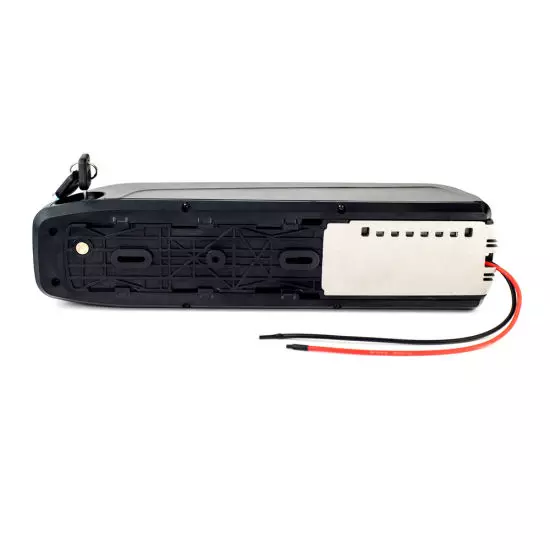

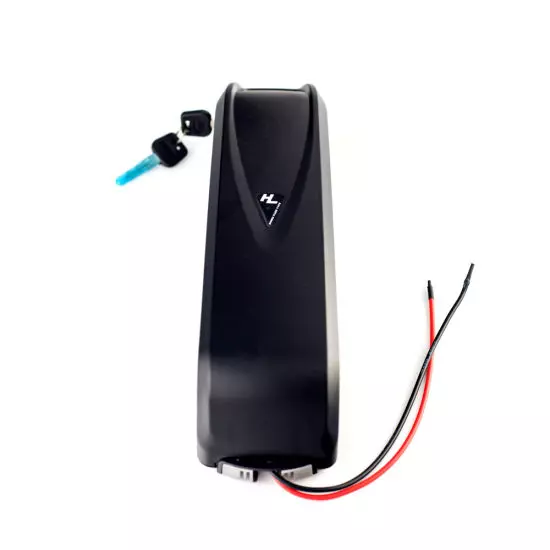

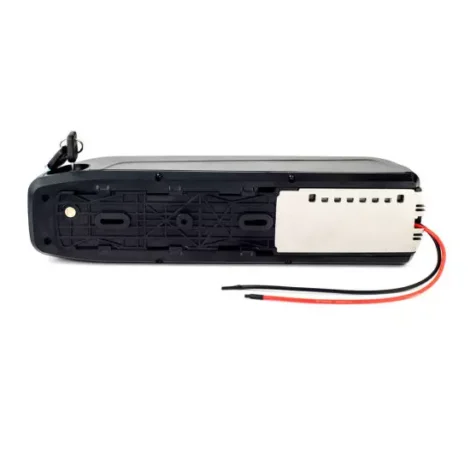

Product Show:
