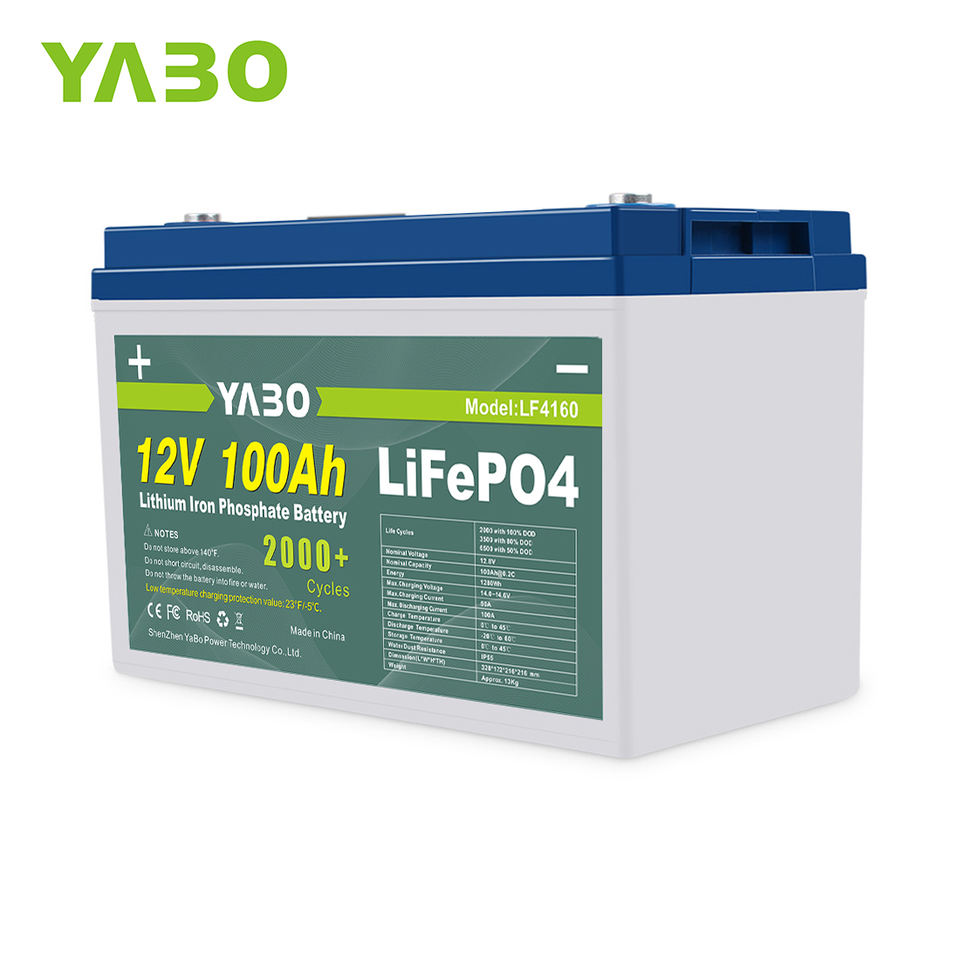

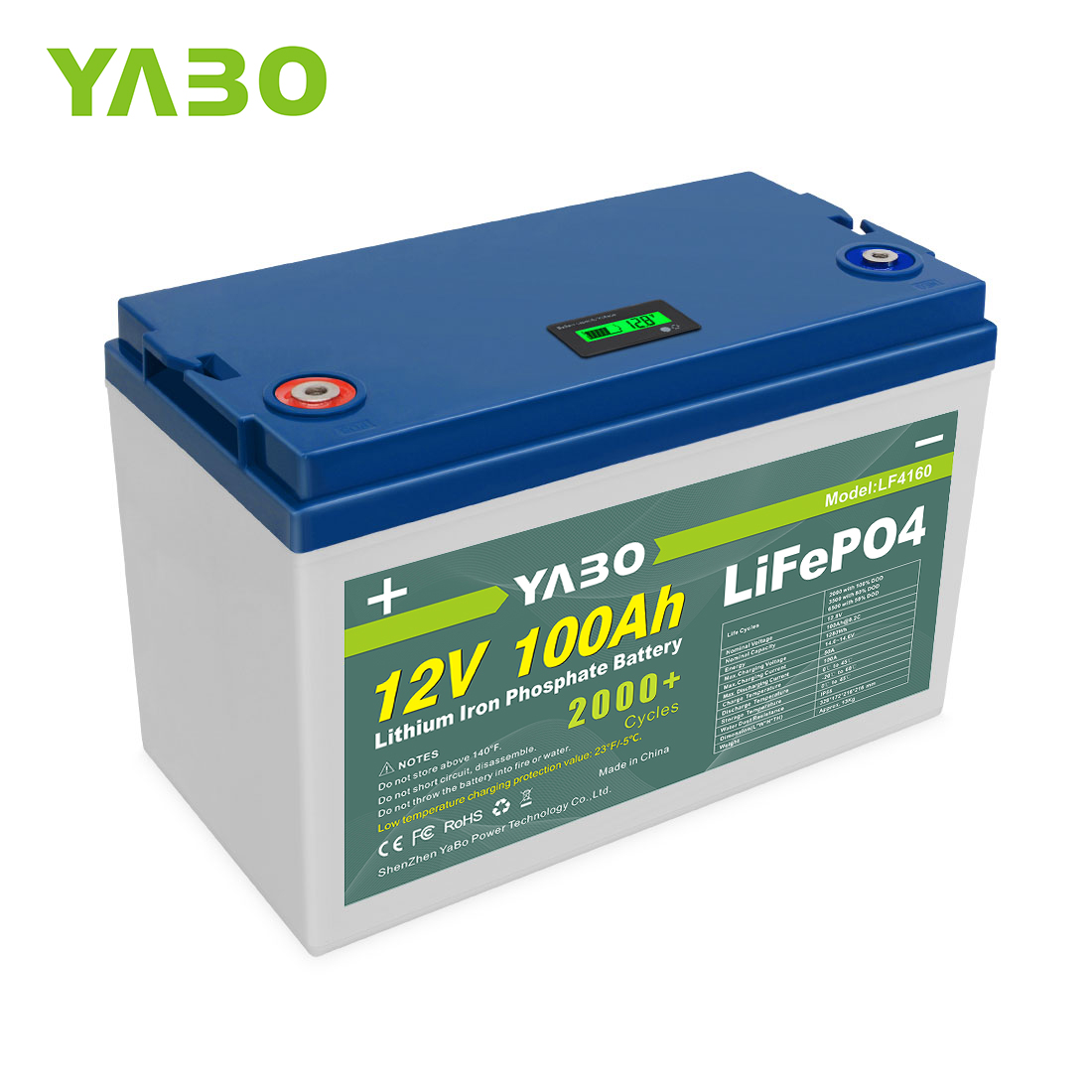

YaBo LiFePO4 Battery Deep Cycle Lithium Ion Battery

Quick Details
Warranty:3years
Chargeable:Yes
Application:Power Tools, BOATS, Golf Carts, Solar Energy Storage Systems, UPS,Solar,Wind Power System,Lighting,Communication Equipment
Battery Size:32700 4S17P
Brand Name:YaBo
Certification:ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB
Model Number:LF4160 12V 100Ah
Place of Origin:Guangdong, China

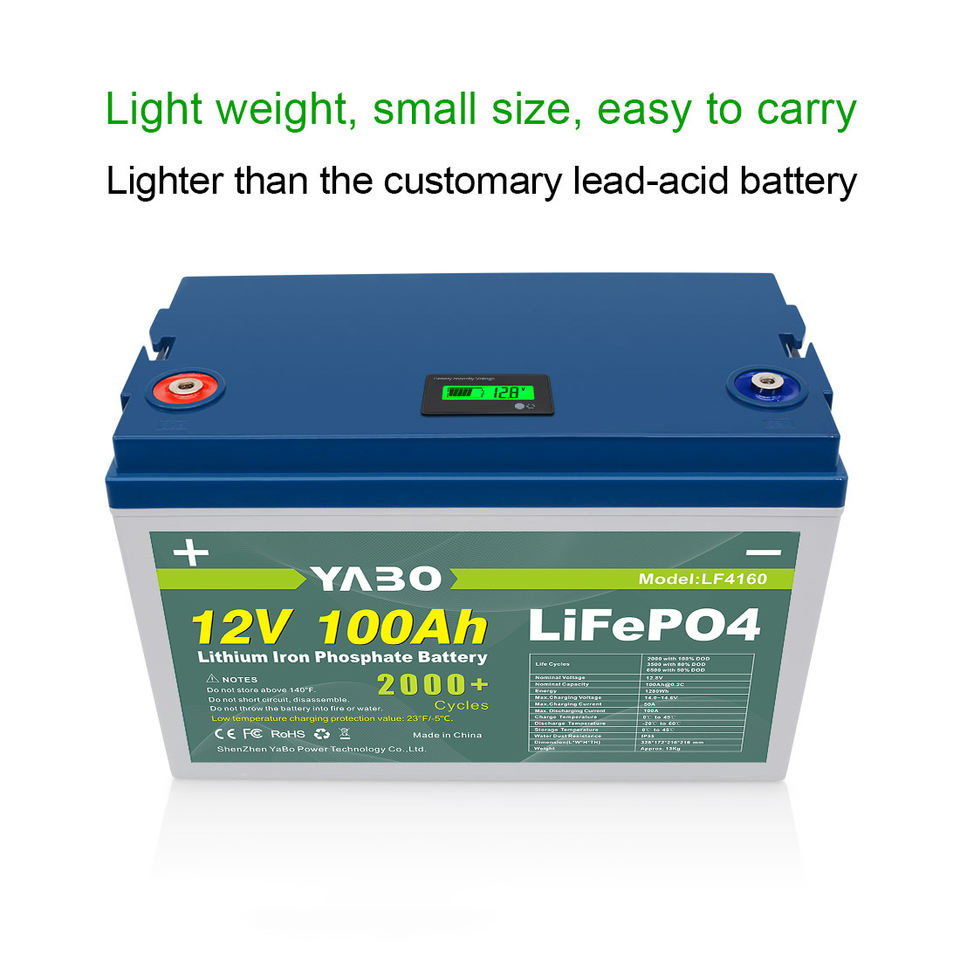

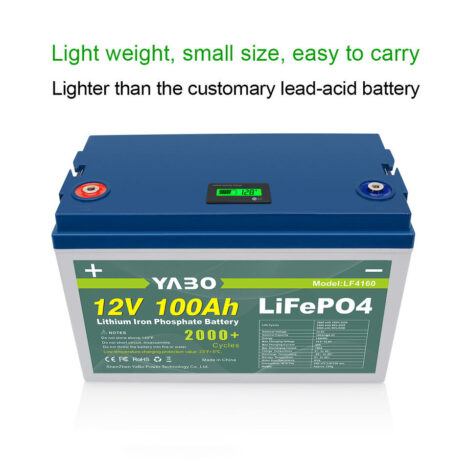

Weight:Approx. 13Kg
Combination Method:17parallels 4series 32700
Energy:1280Wh

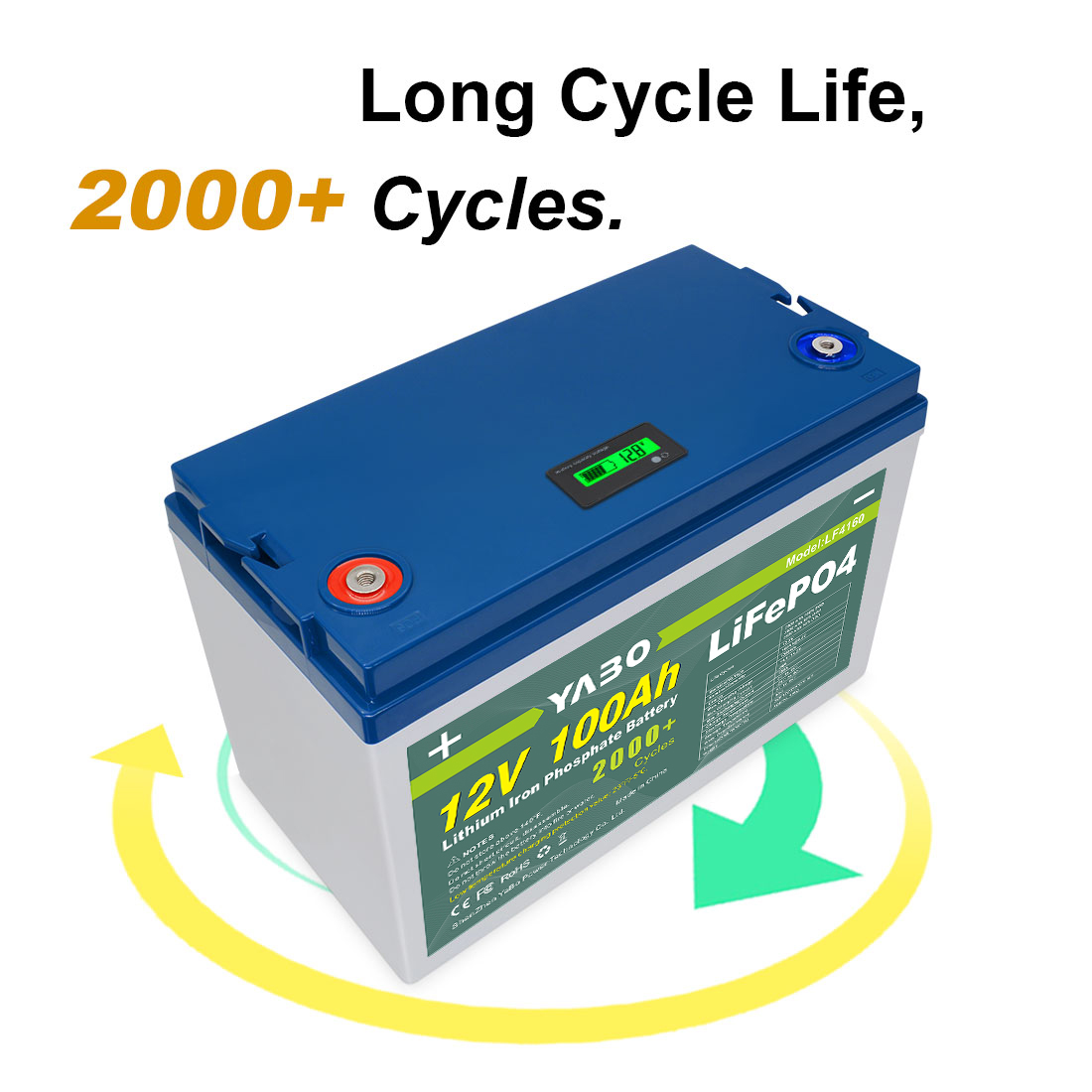

Cycle Life:2000 Cycles
Self Discharge:≤3.5% per month at 25℃
Max.Charging Voltage:14.0~14.6V
Casing:Plastic, Custom

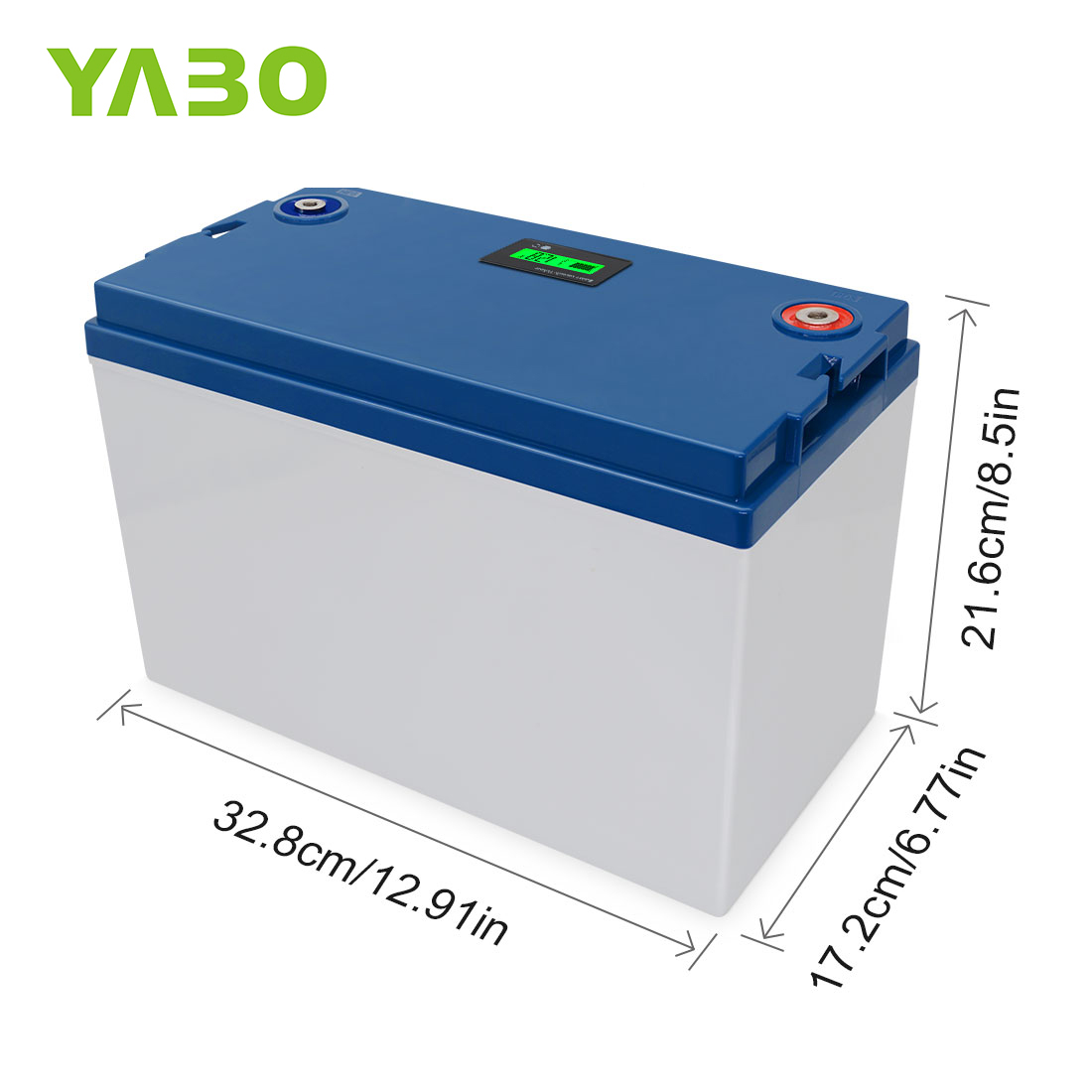

Dimension(L*W*H*TH):328*172*216*216mm
Terminal:M8
Charging Current:50A
Discharging Current:100A
  • Size Guide

    Size Guide

    SIZE CHEST WAIST HIPS
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44
  • Delivery Return

    Delivery

    We ship to all 50 states, Washington DC.
    All orders are shipped with a UPS tracking number.
    Always free shipping for orders over US $200.
    During sale periods and promotions the delivery time may be longer than normal.

    Return

    Thembay will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

    Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
    Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

    Help

    • Give us a shout if you have any other questions and/or concerns.
    • Email: contact@mydomain.com
    • Phone: +1 (23) 456 789
  • Ask a Question

Free

Worldwide
Shopping

100%

Guaranteed
Satisfaction

30 Days

Guaranteed
Money Back

Product Description
Electrical
Characteristics
Nominal Voltage
12.8V
Nominal Capacity
100Ah@0.2C
Energy
1280Wh
Internal Resistance
≤50mΩ
Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V
Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then, changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
Charging Current
20A
Max.Charging Current
50A
Standard Discharging
Discharging Current
50A
Max. Continuous Current
80A
Max.Pulse Current
200A(<3S)
Discharging Cut-off Voltage
10.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP55
Structure
Cell & Format
IFR32700 N65,4S17P
Casing
Plastic
Dimension(L*W*H*TH)
328*172*216*216
Weight
Approx. 13Kg
Terminal
M8
