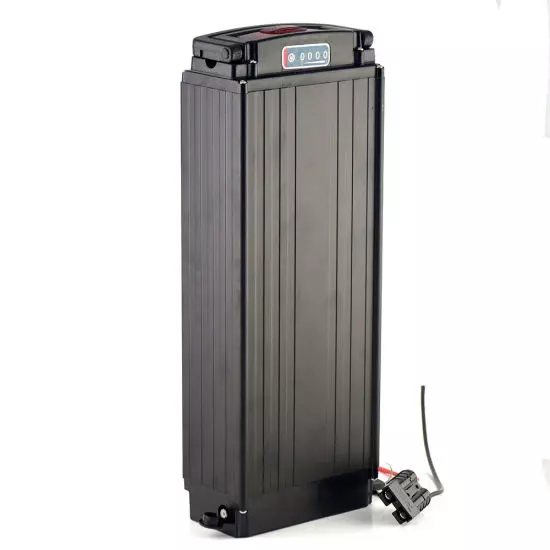

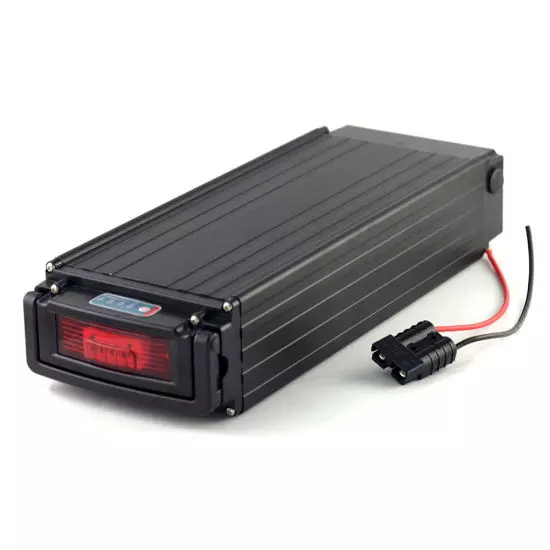

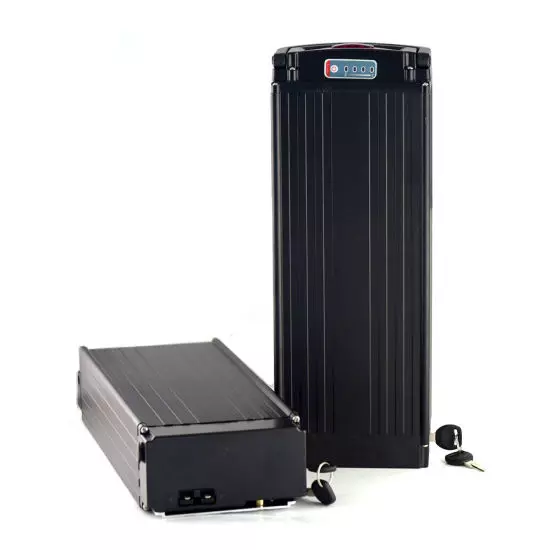

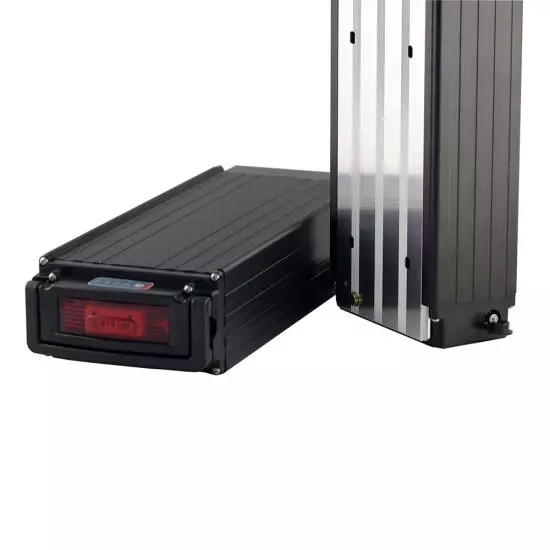

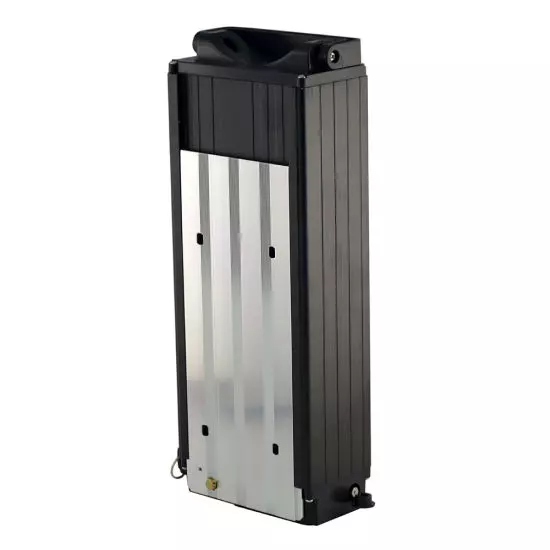

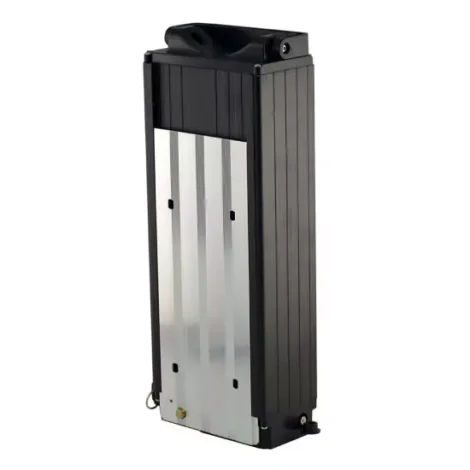

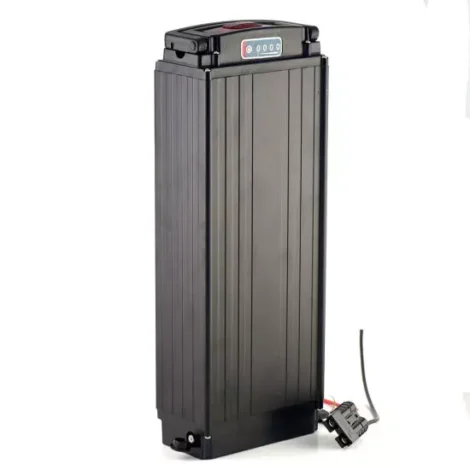

Rechargeable 48V 20ah Lithium Battery for 1000W Electric Bicycle

Port:Shenzhen, China

Production Capacity:3000PCS/Week

Payment Terms:L/C, T/T, Western Union, Paypal, Money Gram

Model NO.:FB-106

Rated Capacity:20ah

Standard Voltage:48V

Usage:Electric Bicycle

Electrolyte:Li-ion

Charging Voltage:54.6V

Battery Type:18650 Power Battery Cell

Battery Configuration:13s8p

Max Charge Current:5A

Continuous Discharge Current:30A

Certifications:CE RoHS MSDS Un38.3

Fit Power:750W,1000W

Warranty:One Year

Discharge Cut off Voltage:35.75V

Competitive Price:Direct Factory Price

Trademark:DELONGTOP

Transport Package:Carton

Specification:410*148*80mm

Origin:China

  • Size Guide

    Size Guide

    SIZE CHEST WAIST HIPS
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44
  • Delivery Return

    Delivery

    We ship to all 50 states, Washington DC.
    All orders are shipped with a UPS tracking number.
    Always free shipping for orders over US $200.
    During sale periods and promotions the delivery time may be longer than normal.

    Return

    Thembay will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

    Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
    Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

    Help

    • Give us a shout if you have any other questions and/or concerns.
    • Email: contact@mydomain.com
    • Phone: +1 (23) 456 789
  • Ask a Question

Free

Worldwide
Shopping

100%

Guaranteed
Satisfaction

30 Days

Guaranteed
Money Back

rechargeable 48v 20ah lithium battery for 1000w electric bicycle

Specification

ModelDL-106
Nominal voltage48V
Nominal capacity20Ah
Battery cell3.7V 2600mAh Grade A lithium battery cell
Battery configuration13S8P(13 series,8 parallel)
Case dimension410*150*80
Case materialaluminum+ABS
Available colorsblack and silver
Net weight6.52KG
Charge portRCA
Discharge portAnderson
Standard charge current4A
Max charge current5A
Continuous discharge current30A
Peak discharge current60A/3 seconds
Charge cut off voltage54.6V
Discharge cut off voltage35.75V
Charge methodCC/CV
Charge portRCA
Discharge portAnderson socket
Warrantyone year
Lifecycle500 times
BMS protectionover-charge,over-discharge,over-current and short circuit
Charge temperature0~45°C
Discharge temperature-20~60°C
Storage temperature10~45°C
Featurestail light with 4 LED power indicators



48V 20Ah rear rack lithium ion ebike battery pack advantages:

1. Safety: 48v 20ah electric bike battery,built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: 3C discharge Rate Cell, 30A BMS
4. Long life cycle, after 500 cycles, the remaining capacity is 70-80%
5. No memory effect,highly efficient charge anytime
6. Wide Operation temperature: -20~60°C
7. Case size,voltage and Capacity can be customized
8. Low self-discharge rate: < 3% monthly
9. With single package, clear warning mark, logo. colorful printed instruction Manual
10. Light weight,small size
11. With 4 LED power indicators and tail light
12. Aluminum case can be adjustable
