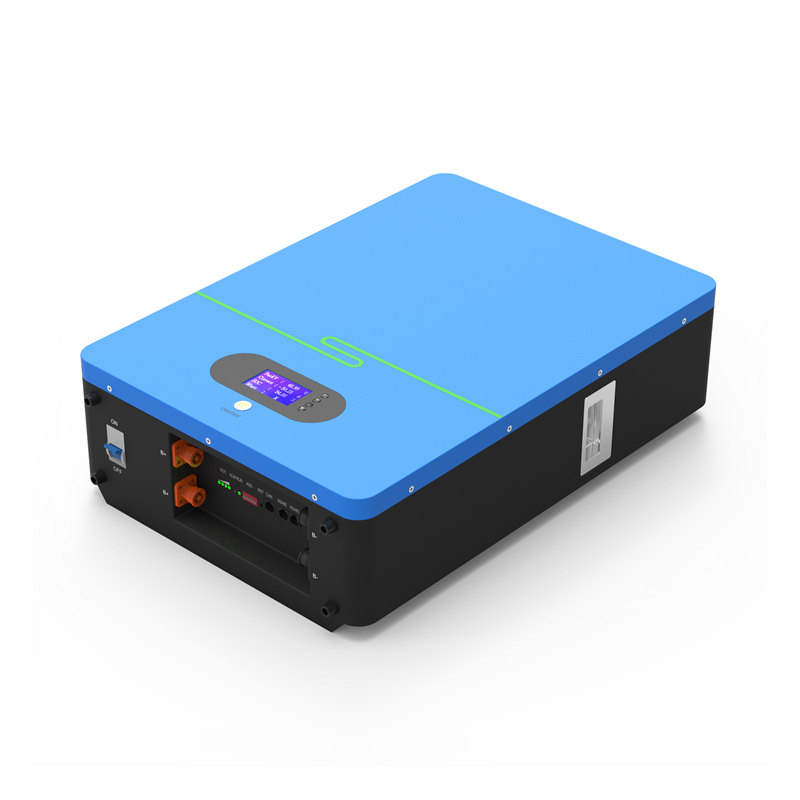

Lifepo4 Lithium-ion Batteries For House Solar System
Quick Details
- Controller Type:MPPT
- Inverter Type:Pure Sine Wave
- Battery Type:LiFePO4
- Power Source:Solar Panel
- Model Number:BG48100
- Brand Name:ZTGF
- Place of Origin:China
- Product name:48v 100ah 5kw power wall
- Battery type:LiFePO4 (LFP)
- Capacity:100AH
- Voltage:48V/51.2V
- Max charge current:100AH
- Max discharge current:100AH
- Communication interface:RS485/RS232/CAN
- Charge temperature range:0~65℃
- Discharge temperature range:-20~65℃
- Dimension:390*175*600mm
Product Paramenters
|

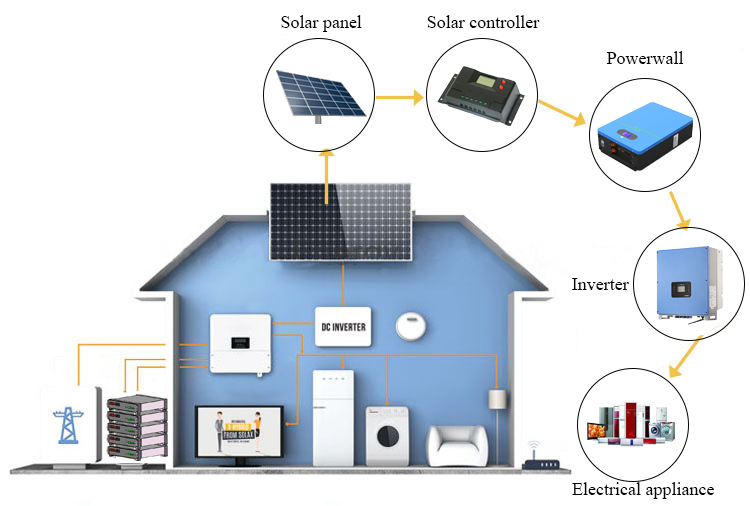

48V 100AH lifepo4 solar energy storage system
|
|
|
Product Name
|
5kw power wall
|
|
Product Specification
|
48V 100AH
|
|
Nominal Voltage
|
48V
|
|
Nominal Capacity
|
100AH
|
|
Cell Type
|
LiFePO4(LFP)
|
|
Standard Charge Voltage
|
58.4V
|
|
Max Charge Current
|
100AH
|
|
Discharge Cut-off Voltage
|
40V
|
|
Max Discharge Current
|
100AH
|
|
Display
|
LED or Customized
|
|
Communication Interface
|
RS485/R232/CAN
|
|
Cycle Life
|
≥3000 cycles(80%DOD)
|
|
Charge Temperature Range
|
0~65℃
|
|
Discharge Temperature Range
|
-20~65℃
|
|
Colour
|
Customized
|
|
Dimension
|
390*175*600mm
|
|
Weight
|
50Kg
|
|

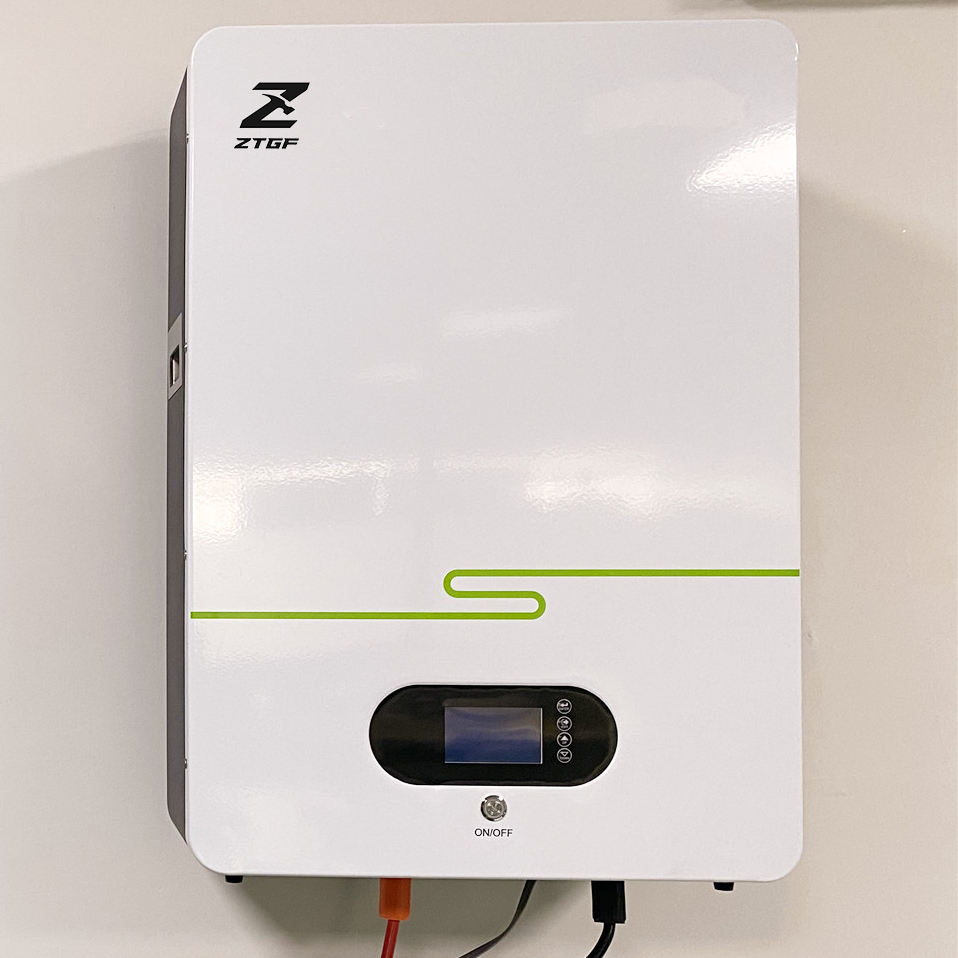

Installation Method
|
wall mounted
|
