Lifepo4 Battery For Electric Vehicle
Quick Details
- Warranty:Other
- Anode Material:LFP
- Chargeable:Yes
- Application:Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
- Brand Name:ZTGF
- Certification:ce, CE/RoHS/U L/UN38.3
- Model Number:LISHEN4
- Place of Origin:China
- Weight:1.1
- The charging ratio:6C
- The discharge rate:10C
- Product name:LifePO4 Lithium Battery
- Type:LiFePO4
- Capacity:40AH
- Voltage:3.2V
- Cycle life:2000 Times
- Max charge current:6C
- Max discharge current:10C
- Dimension:148*27.5*129mm
- Keywords:Lifepo4 battery
Product Paramenters
|
3.2V 40AH prismatic lifepo4 battery cell
|
|
|
Battery Type
|
lifepo4 battery
|
|
Nominal Voltage
|
3.2V
|
|
Nominal Capacity
|
40AH
|
|
Internal Resistance
|
0.7mΩ
|
|
Cycle Life
|
2000 cycles(80%DOD)
|
|
Max charge current
|
6C
|
|
Max discharge current
|
10C
|
|
End of discharge voltage
|
2V
|
|
Charge working Temperature
|
0~55°C
|
|
Discharge working Temperature
|
-20~60°C
|
Products Description

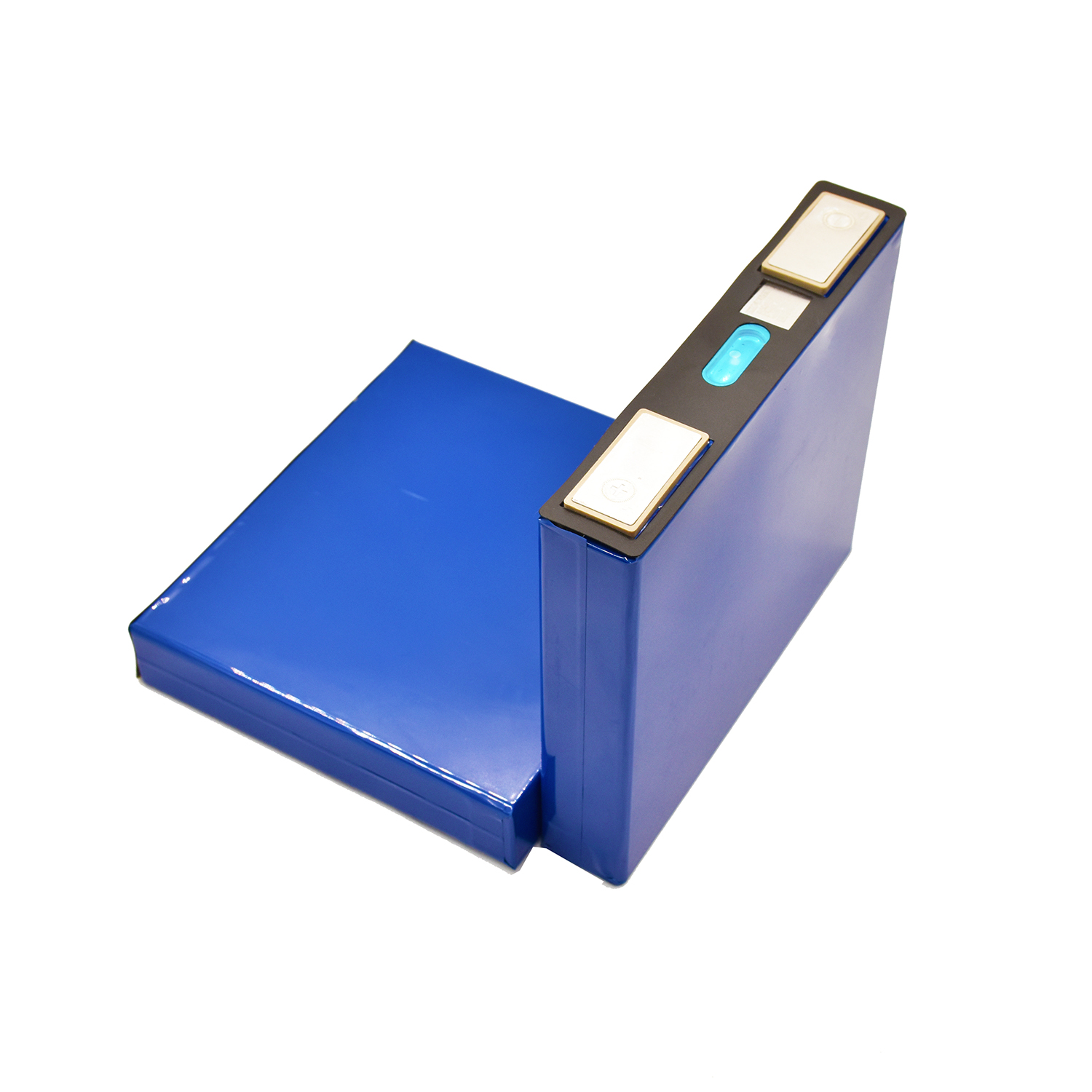

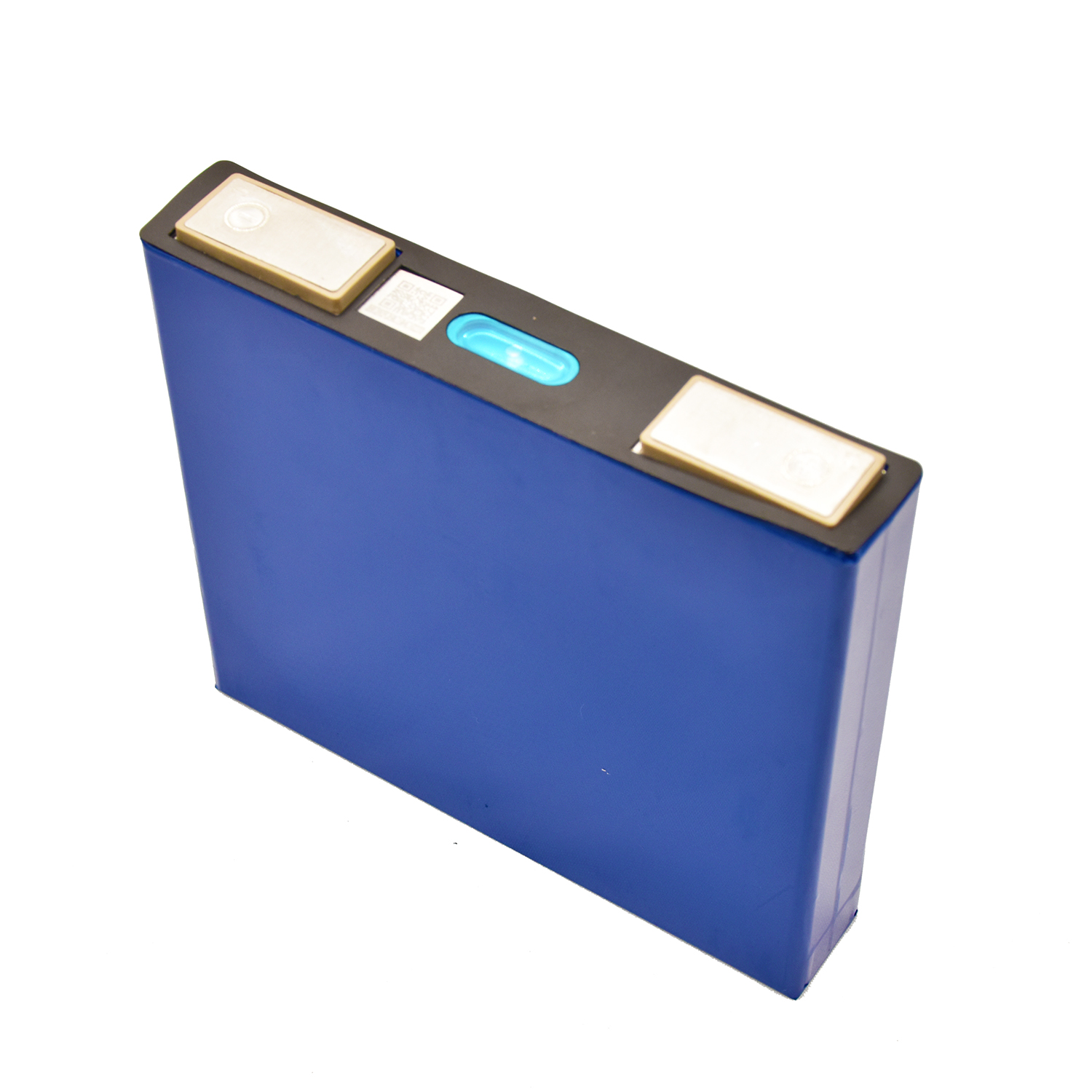

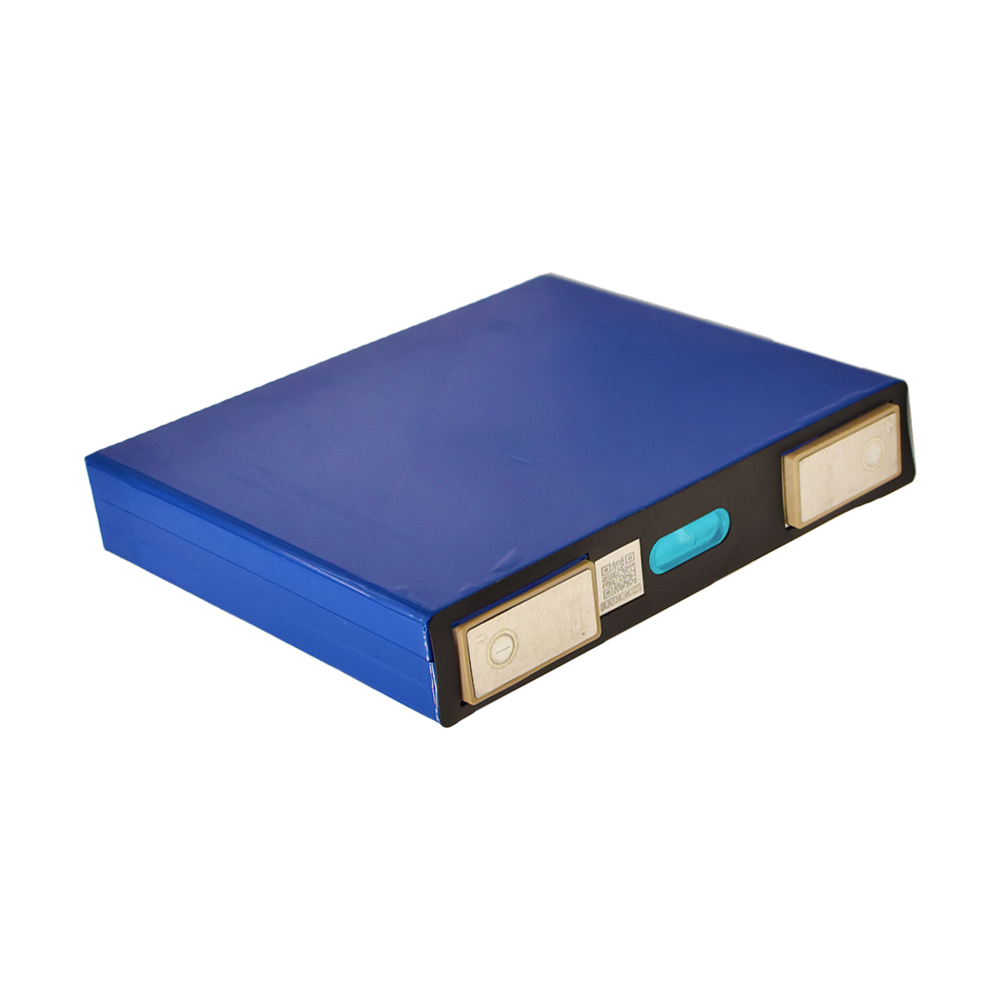

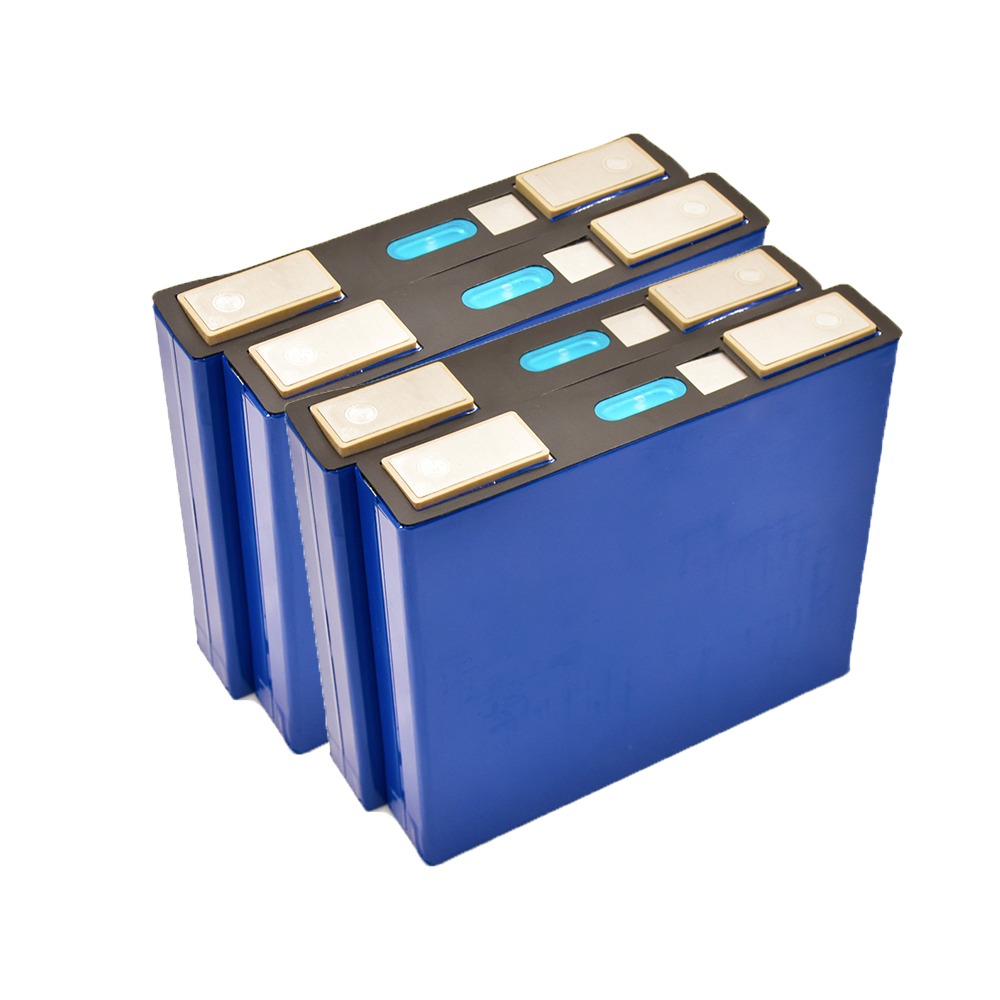

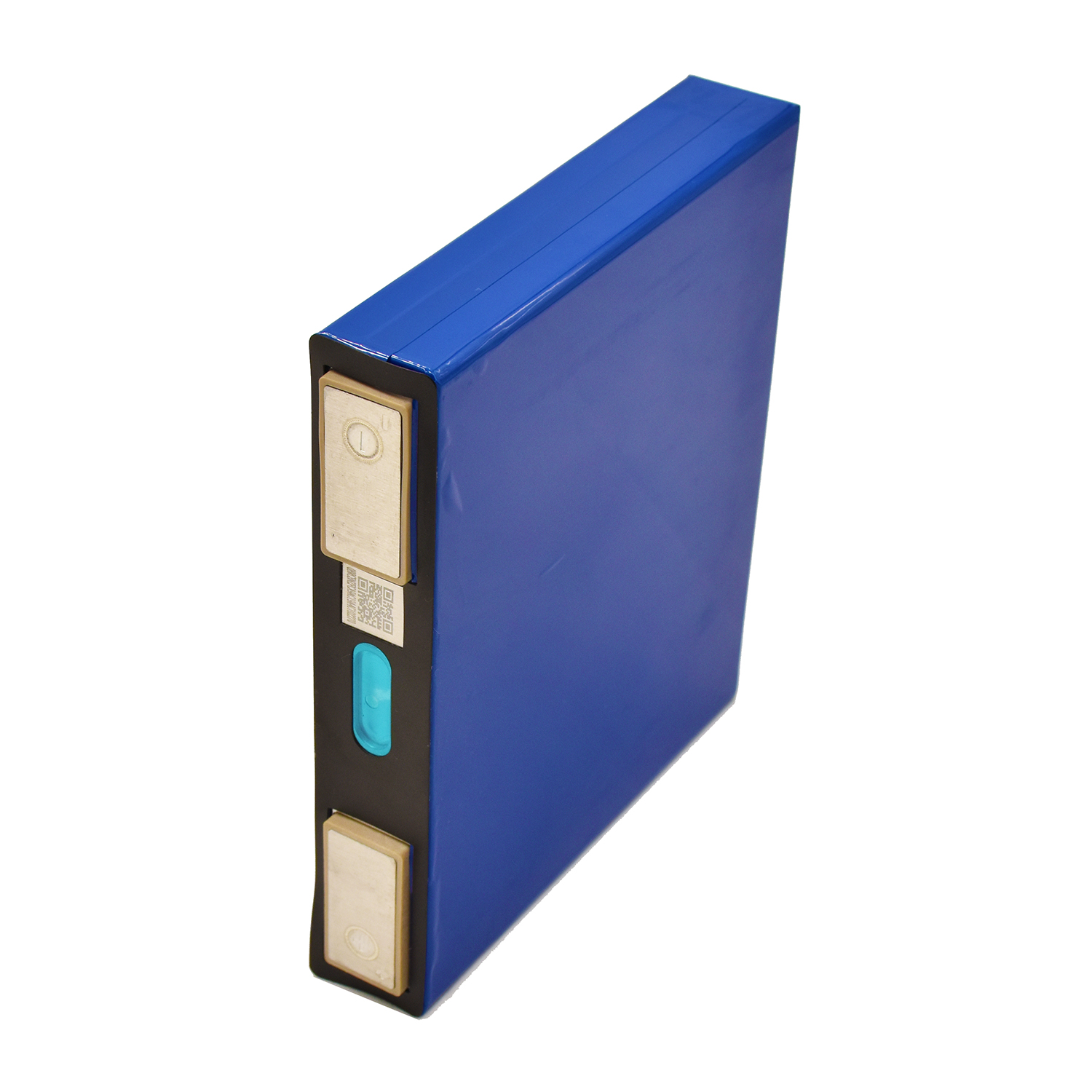

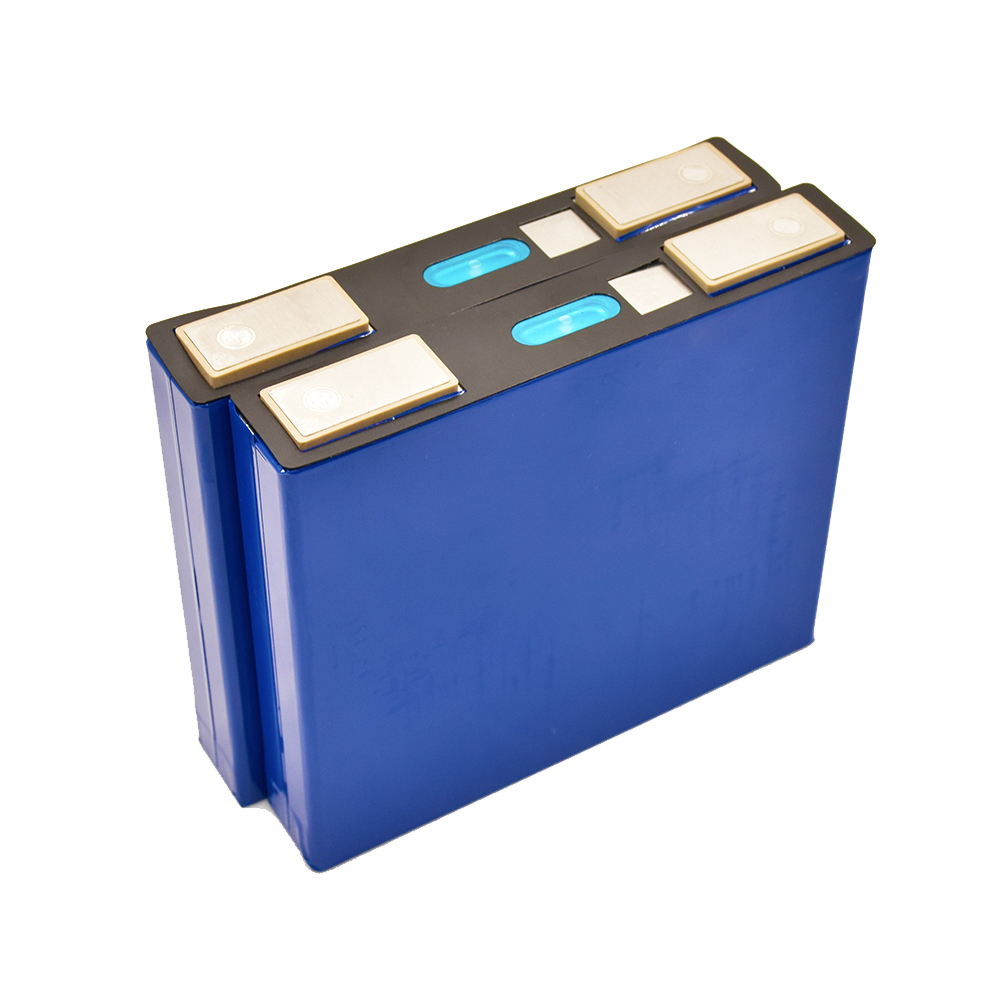

Details Images
