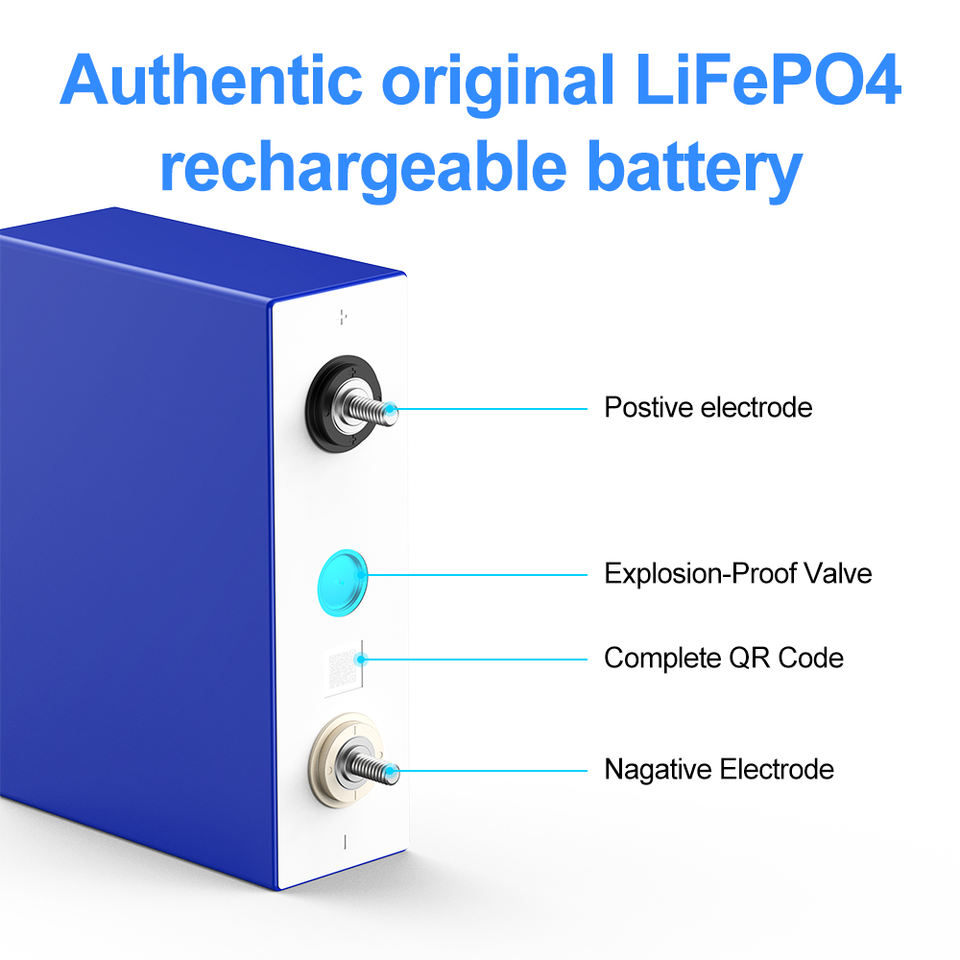

Lifepo4 Battery Cell
Quick Details
- Place of Origin:China
- Brand Name:ZTGF
- Model Number:EVDLL
- Battery Type:LiFePO4
- Product name:Lithium Battery Cell
- Battery type:Lifepo4/lithium Battery
- Capacity:50/80/90/100/105AH
- Voltage:3.2v
- Warranty:3years
- Cycle life:4000 Times

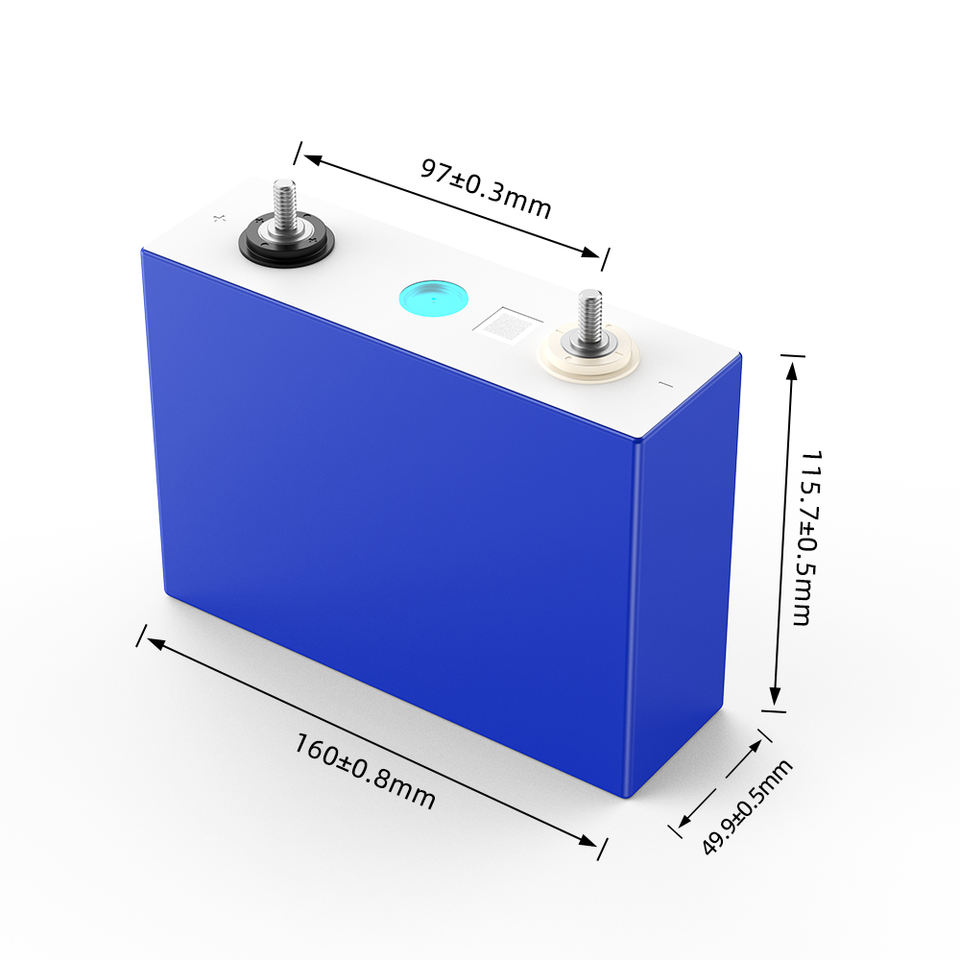

- Size:160*50*118mm
- OEM/ODM:Accepatable
- Application:Solar Energy Storage Systems,electric power systems,vehicle,golf carts
- Keywords:Battery Lithium Lifepo4

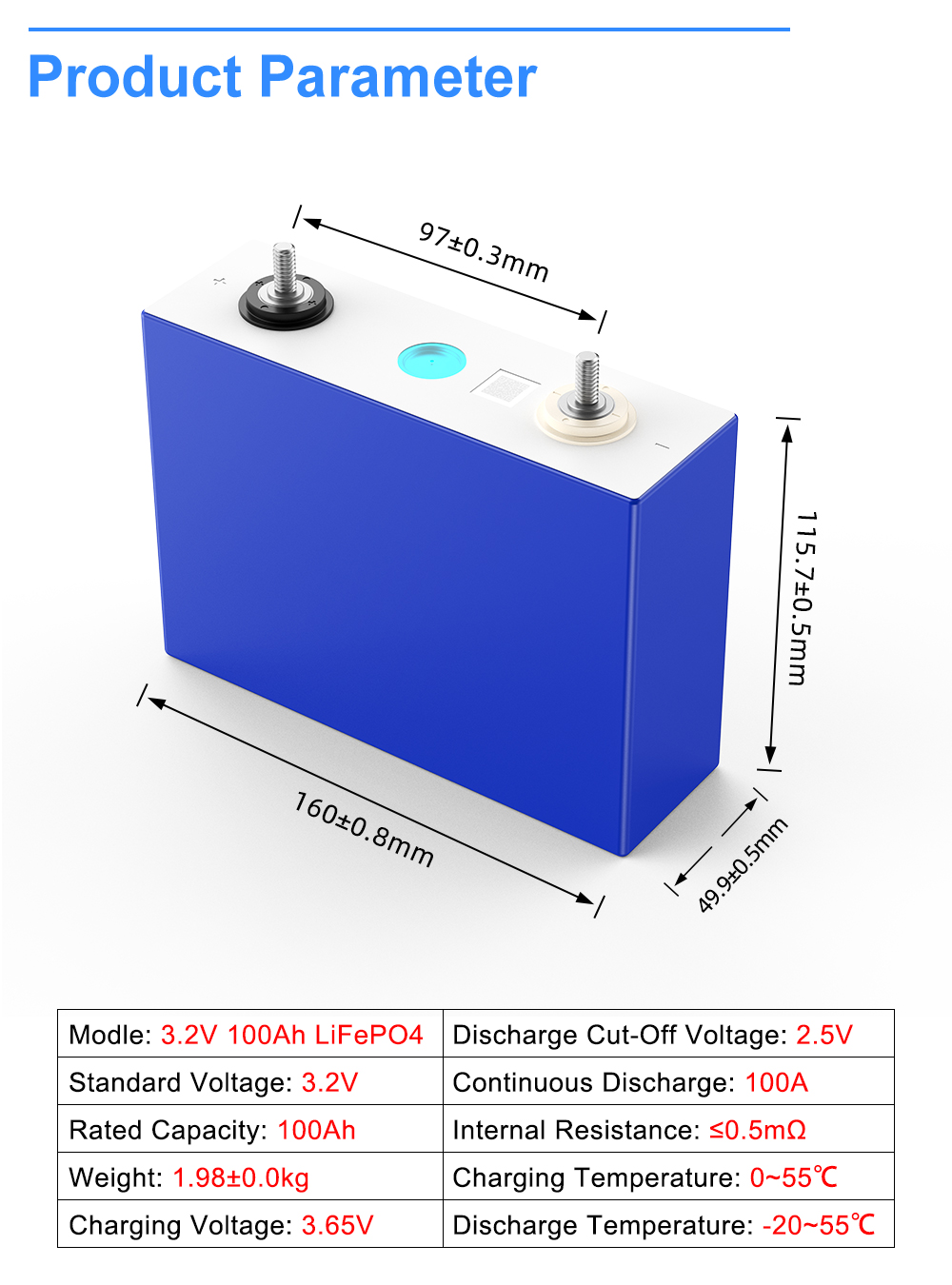

Product Paramenters
|
|
50AH
|
80AH
|
90AH
|
|
Battery Type
|
LiFePO4 Battery
|
LiFePO4 Battery
|
LiFePO4 Battery
|
|
Cycle Life
|
>4000 times
|
>4000 times
|
>4000 times
|
|
Nominal Voltage
|
3.2V
|
3.2V
|
3.2V
|
|
Nominal Capacity
|
50AH
|
80AH
|
90AH
|
|
Internal Resistance
|
≤0.5mΩ
|
≤0.5mΩ
|
≤0.5mΩ
|
|
Max discharge current
|
3C
|
3C
|
1C
|
|
End of discharge voltage
|
2.5V
|
2.5V
|
2.5V
|
|
Charge working Temperature
|
0~55℃
|
0~55℃
|
0~55℃
|
|
Discharge working Temperature
|
-20~55℃
|
-20~55℃
|
-20~55℃
|
|
100AH
|
105AH
|
|
|
Battery Type
|
LiFePO4 Battery
|
LiFePO4 Battery
|
|
Cycle Life
|
>4000 times
|
>4000 times
|
|
Nominal Voltage
|
3.2V
|
3.2V
|
|
Nominal Capacity
|
100AH
|
105AH
|
|
Internal Resistance
|
≤0.5mΩ
|
≤0.5mΩ
|
|
Max discharge current
|
2C
|
1C
|
|
End of discharge voltage
|
2.5V
|
2.5V
|
|
Charge working Temperature
|
0~55℃
|
0~55℃
|
|
Discharge working Temperature
|
-20~55℃
|
-20~55℃
|
Products Description

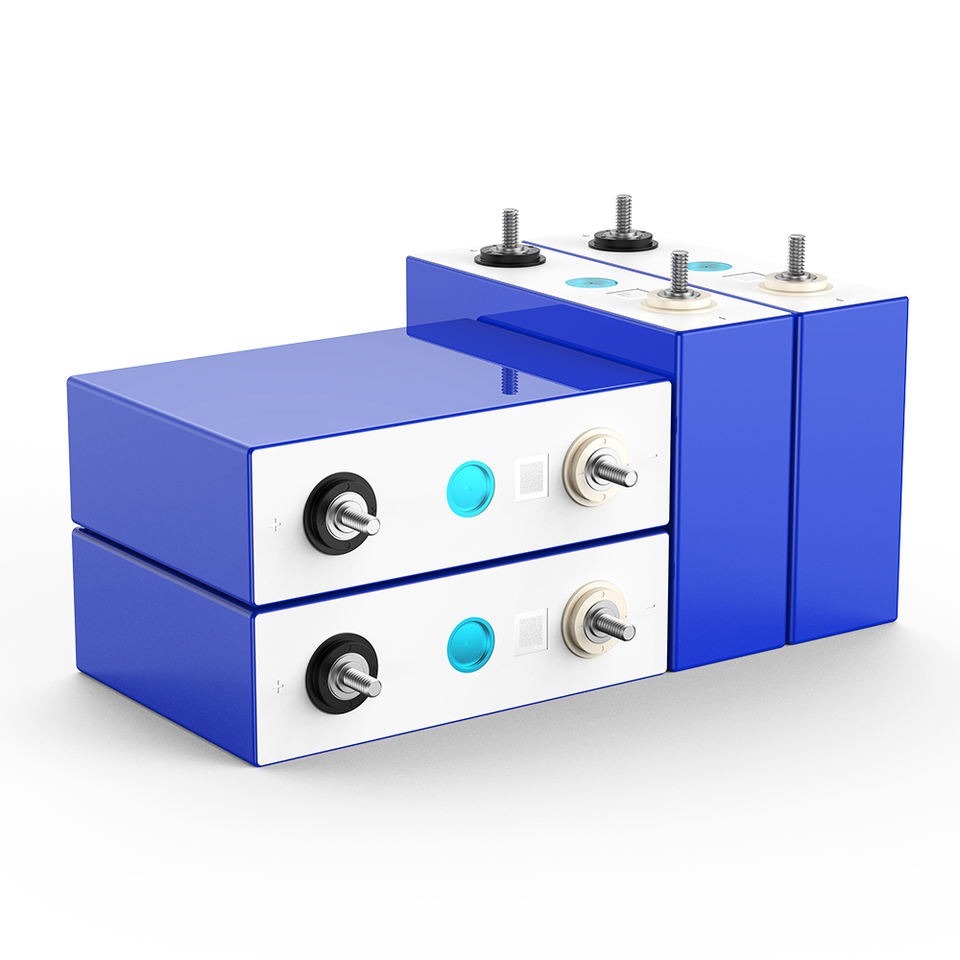

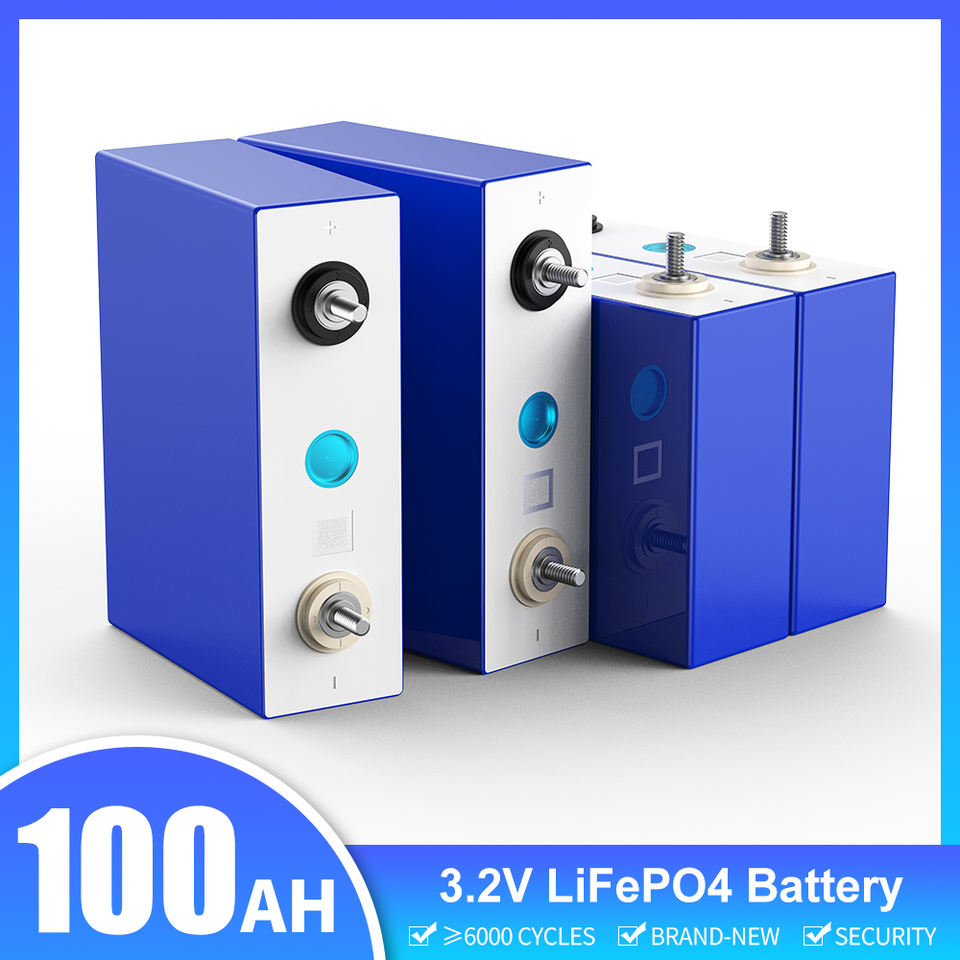

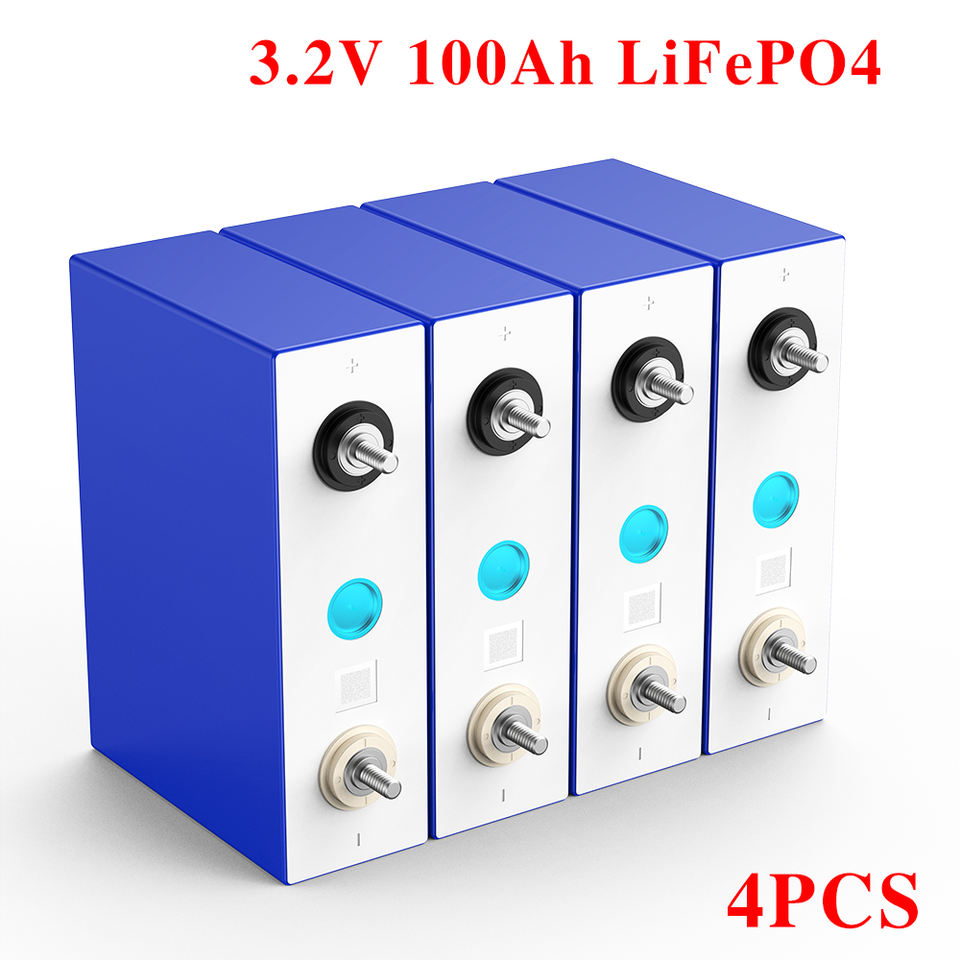

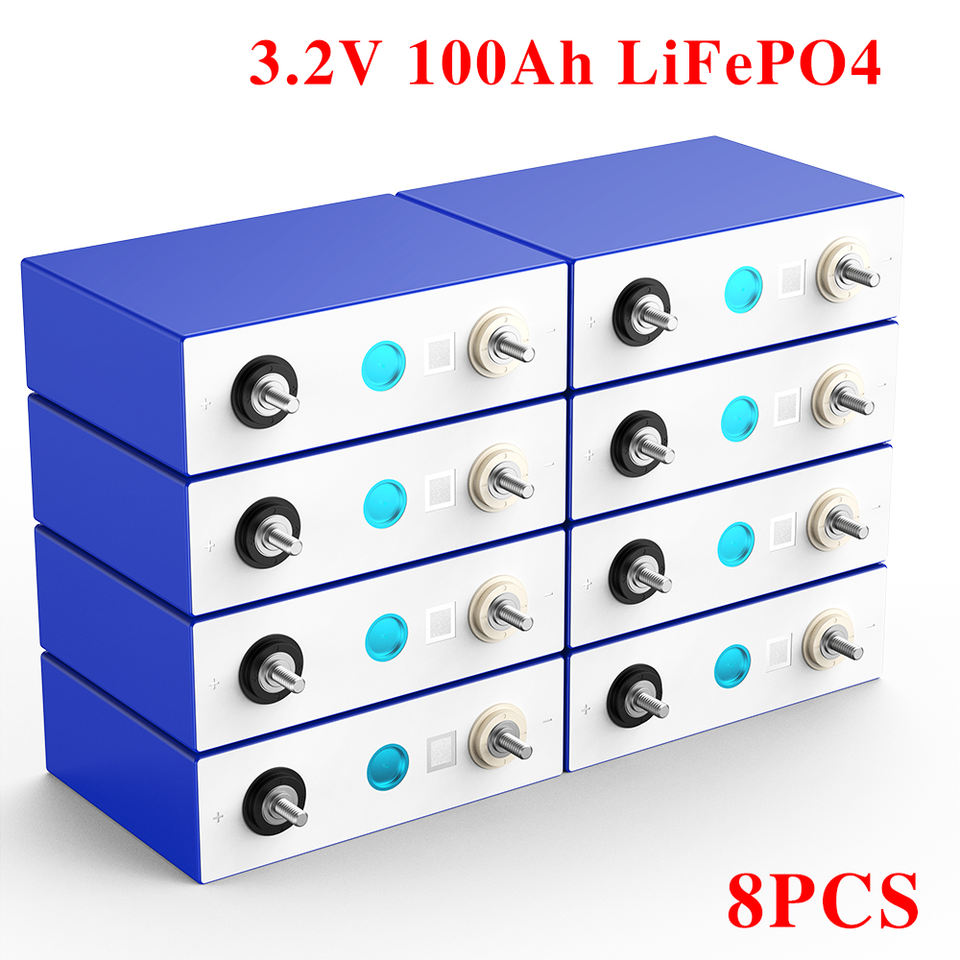

Details Images
