Highest Density 66160 Model 2.3V 45AHLTO Lithium Tianate Battery

-The lithium titanate battery (Li4Ti5O12)is a type of rechargeable battery based on advanced nano-technology, which has 30000cycles life,fast charge(up to 10C) and wide working temperature range(-50°C ~ 65°C) .

-It has been widely used for electric vehicles, household&industrial solar storage ,car audio&car start ,UPS etc. Applications .

  • Size Guide

    Size Guide

    SIZE CHEST WAIST HIPS
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44
  • Delivery Return

    Delivery

    We ship to all 50 states, Washington DC.
    All orders are shipped with a UPS tracking number.
    Always free shipping for orders over US $200.
    During sale periods and promotions the delivery time may be longer than normal.

    Return

    Thembay will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

    Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
    Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

    Help

    • Give us a shout if you have any other questions and/or concerns.
    • Email: contact@mydomain.com
    • Phone: +1 (23) 456 789
  • Ask a Question

Free

Worldwide
Shopping

100%

Guaranteed
Satisfaction

30 Days

Guaranteed
Money Back

Products Details

Product name

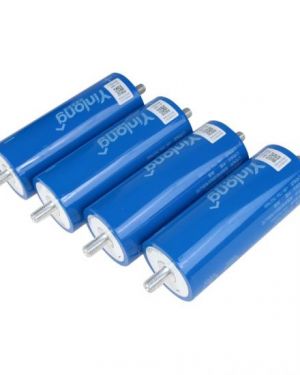

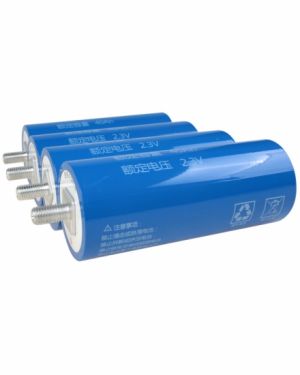

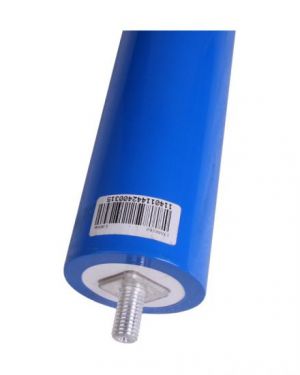

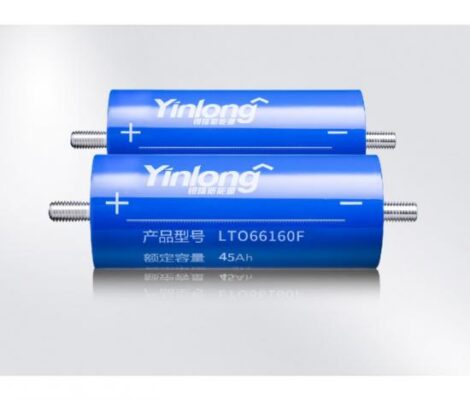

Yinlong Lithium Tianate LTO Battery Cell 66160 Model Highest capactiy 45Ah 2.3V

Specification

Item

Parameters

Model

OSN-66160-LTO45Ah

Materials

LTO

Nominal capacity

45Ah

Nominal voltage

2.3 V

Dimension

Length: 160±1.5mm

Diameter: 66±1mm

Weight

1.24±0.1kg

Internal Resistance

≤1mΩ

Operating voltage

Charge cut-off voltage

2.8 V

Discharge cut-off voltage

1.5 V

Maximum charge current

4C

Maximum discharge current

ccucurrentcucurrent

10C

Cycle life

30000 times

Operating Thermal Ambient

Charging

-50℃~ 65℃

Discharging

-50℃~ 65℃

Storage Thermal Ambient

Short term

(within 1 month)

-20℃~ 45℃

Short term

(within 1 year)

-20℃~ 20℃

Highlight

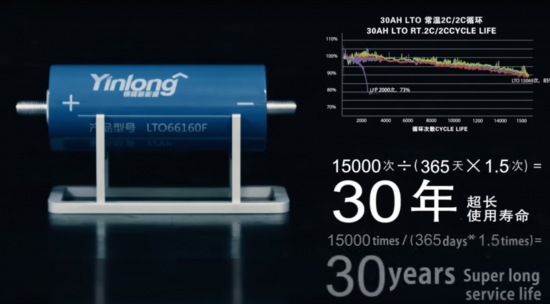

  Super long cycle life: over 30,000 times

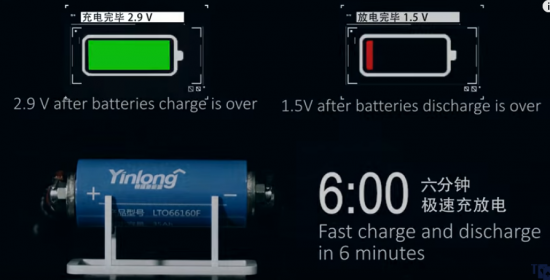

  Faster charge: 10mins fully charged

  Higher discharge rate: Up to 10C

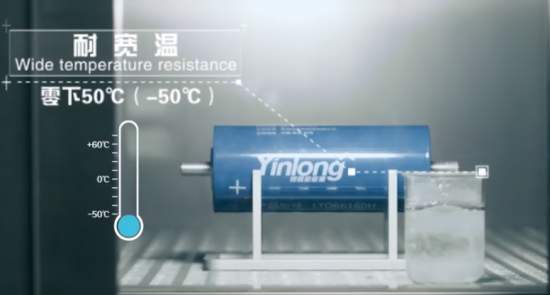

  Wide working temperature range: -50°C ~ 65°C

  High Safety(No fire, explosion,leakage)
