GBS 3.2V 400Ah Lithium Prismatic Lifepo4 Cells
GBS 3.2V 400Ah Lithium Prismatic Lifepo4 Cells
Product Details:
| Place of Origin: | China |
|---|---|
| Brand Name: | GBS Battery |
| Certification: | CE |
| Model Number: | GBS-LFP400AHA |
Payment & Shipping Terms:
| Retail Price: | 320 USD |
|---|---|
| Wholesale Price: | Negotiable |
| Packaging Details: | Original custom Plywood cases |
| Payment Terms: | T/T |
-
Size Guide
Size Guide
SIZE CHEST WAIST HIPS XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 -
Delivery Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Thembay will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
- Give us a shout if you have any other questions and/or concerns.
- Email: contact@mydomain.com
- Phone: +1 (23) 456 789
-
Ask a Question
Ask a Question
GBS 3.2V 400Ah Lithium Prismatic Lifepo4 Cells
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
| Nominal Capacity: | 400Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤0.35mΩ | Operating Votage: | 3.2V |
| Dimension: | 362*73*310±3mm | Battery Weight: | 12.9±0.2kg |
Product Description

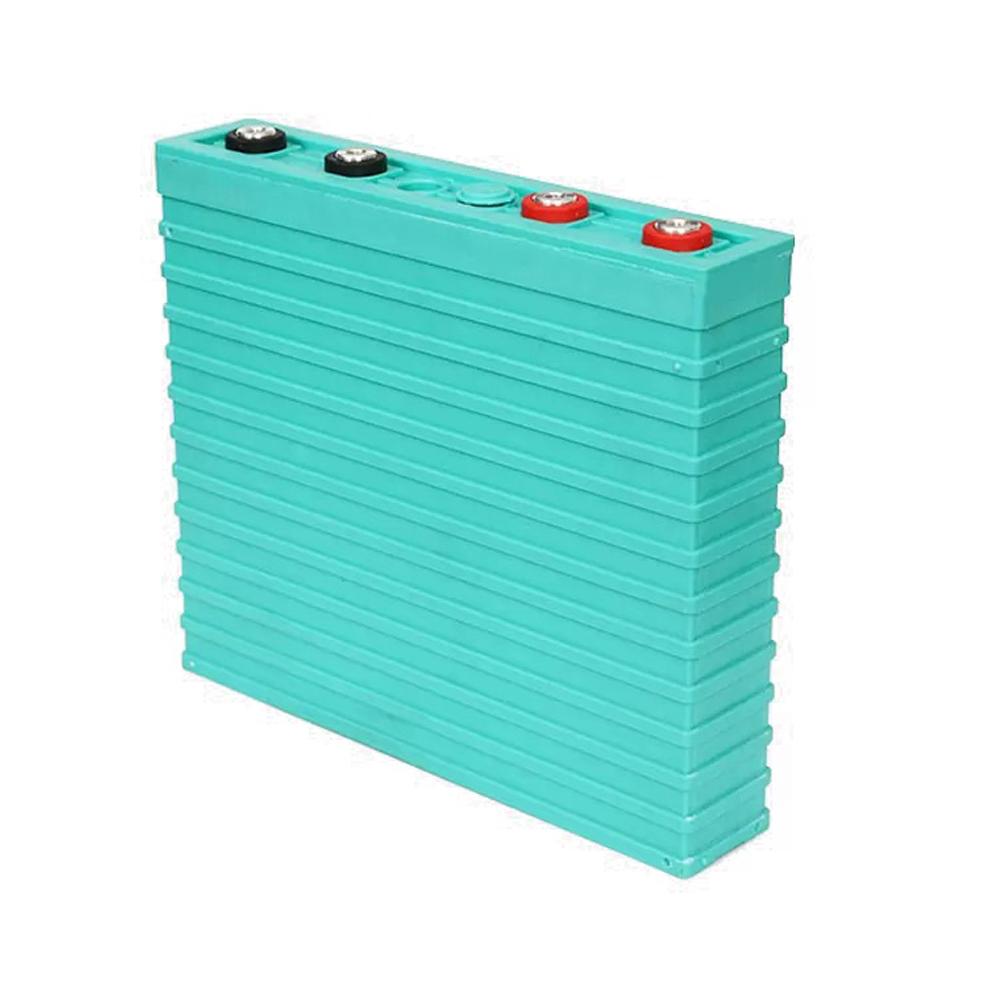

GBS 3.2V 400Ah Lithium Prismatic Lifepo4 Cells
Model:GBS-LFP400AHA
Nominal Voltage:3.2V
Nominal Capacity:400Ah
Internal Resistance:≤0.35mΩ
Dimensions:362*73*310±3mm
Weight:12.9±0.2kg
Basic Performance
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature. The battery structure is safe and good.
(3) Good performance under low temperature. discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance: When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform
well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
(7) Low cost.
(8) No pollution during manufacture and usage.
Product Description
No | Item | Parameter Specification |
1 | Model | GBS-LFP400Ah-A |
2 | Nominal Capacity | 400Ah |
3 | Minimum Capacity | 400Ah |
4 | Nominal Voltage | 3.2 V |
5 | Internal Resistance | ≤0.35mΩ |
6 | Standard Charge | 0.25C |
7 | Fast Charge | 1.0C |
8 | End of Charge | 3.55V |
9 | Standard Discharge | 0.5C |
10 | Max Discharge | 2.0C |
11 | Instantaneous Discharge | 5C(10S) |
12 | End of Discharge | 2.5V |
13 | Working Temperature | -20~60℃ |
14 | Cycle Life | >3000 cycles（0.5C） |
15 | Battery Weight | 12.9±0.2kg |
16 | Shell Material | PP |
17 | Cell Dimensions | 362X73X310±3mm |
Detailed Images
