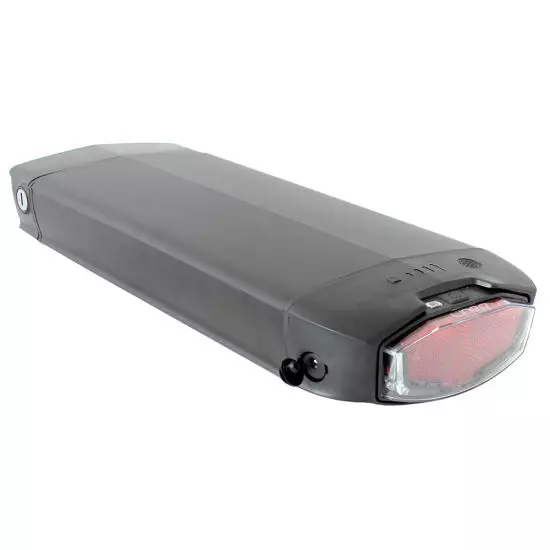

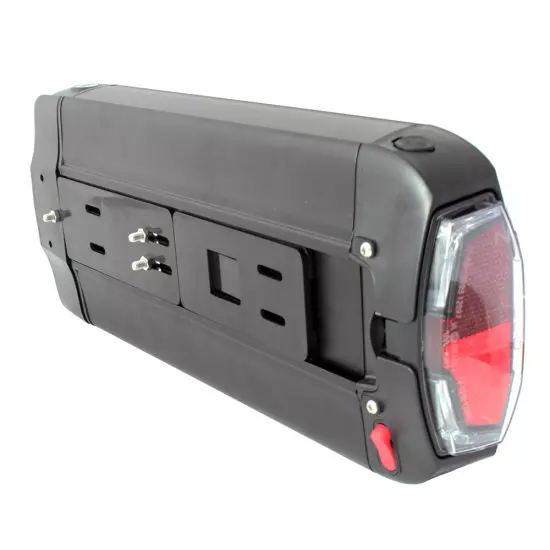

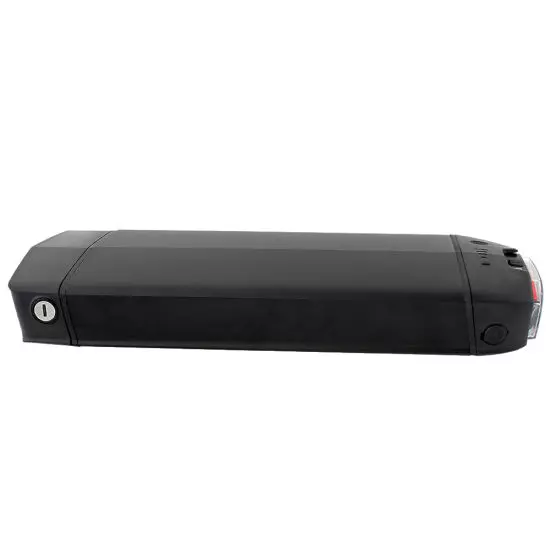

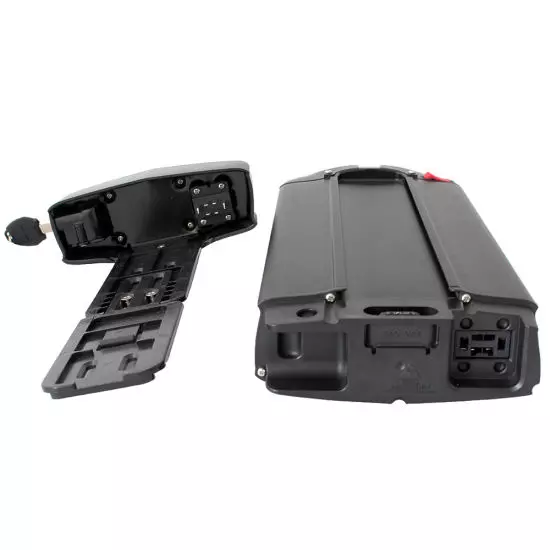

OEM Lithium ion Battery Pack Silver Fish 60v 24ah Electric Bicycle Ebike Battery
| Model | FB-109 |
| Nominal voltage | 36V |
| Charge voltage | 42V |
| Nominal capacity | 15Ah |
| Battery type | 3.7V 2500mAh 18650 lithium battery cell |
| Battery configation | 10S6P |
| Net weight | 4.3KG |
| Case dimension | 446*156*67mm |
| Standard charge current | 3A |
| Continuous discharge current | 20A(can be customized) |
| Peak discharge current | 60A |
| Discharge cut off voltage | 28V |
| Charge method | CC/CV |
| Case colors | silver and black |
| Warranty | 12 months |
| Lifecycle | 500 times |
| Charge temperature | 0~45ºC |
| Discharge temperature | -20~60ºC |
| BMS protection | over-charge,over-discharge,over-current,short circuit |
Main Features:

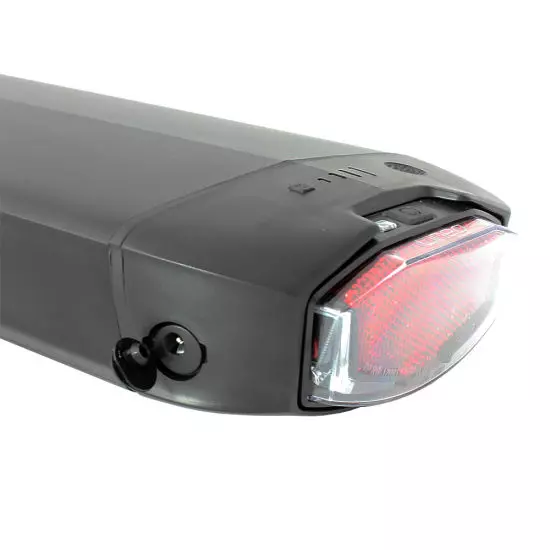

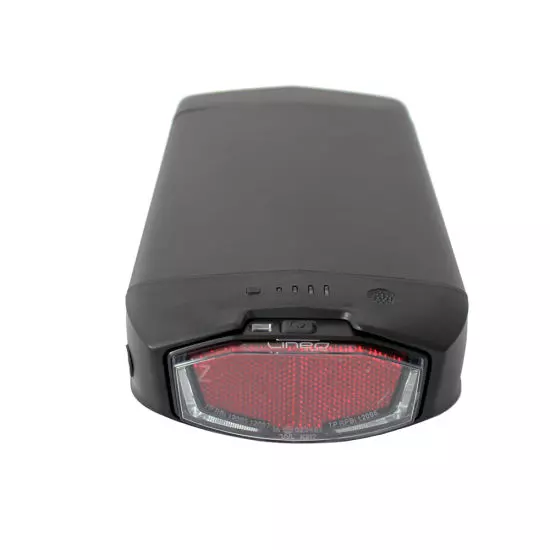

1. With LED tail lights for easy night riding;
2. Safety Lock and Key. There is a Bike, There is a Battery;
3. With LED Power display which can show the remaining power
4. Lighter Plastic Case with Water-proof Power Switch, Prevent Losing Power;
5. Japanese, Korean,and Chinese Cells are available for your choices ;
6. The voltage, capacity can be customized, if you need to custom a battery pack in our existing plastic housing, you just need to provide these information to us:
7.Available colors:siver and black
8.Can put maxiumum 52pcs 18650 battery cells inside the case
