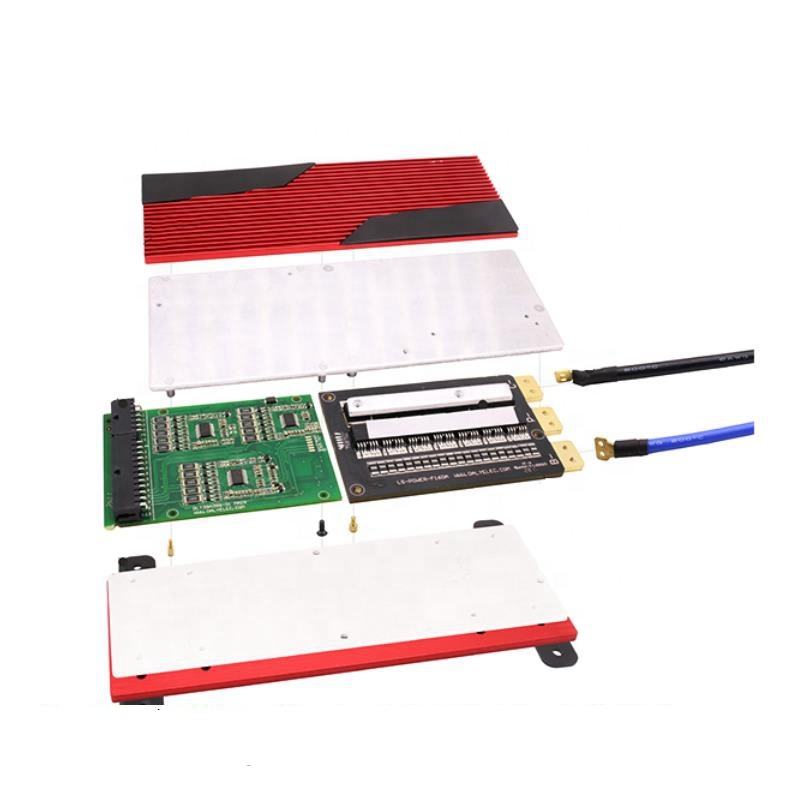

8s 200A BMS 24v With Balance For Lifepo4 Battery Pack
8s 200A BMS 24v With Balance For Lifepo4 Battery Pack
Quick Details
- Model Number:bms 24v
- Place of Origin:Guangdong, China
- Brand Name:boyeenergy
- Base Material:FR4
- Copper Thickness:1OZ/2OZ
- Board Thickness:0.8-1.6mm
- Min. Hole Size:0.2mm
- Min. Line Width:0.1mm or 4mil
- Min. Line Spacing:0.1mm
- Surface Finishing:HALS/HALS OSP etc
- Product name:8S 24V BMS
- Keywords:bms 8s
- Warranty:1year

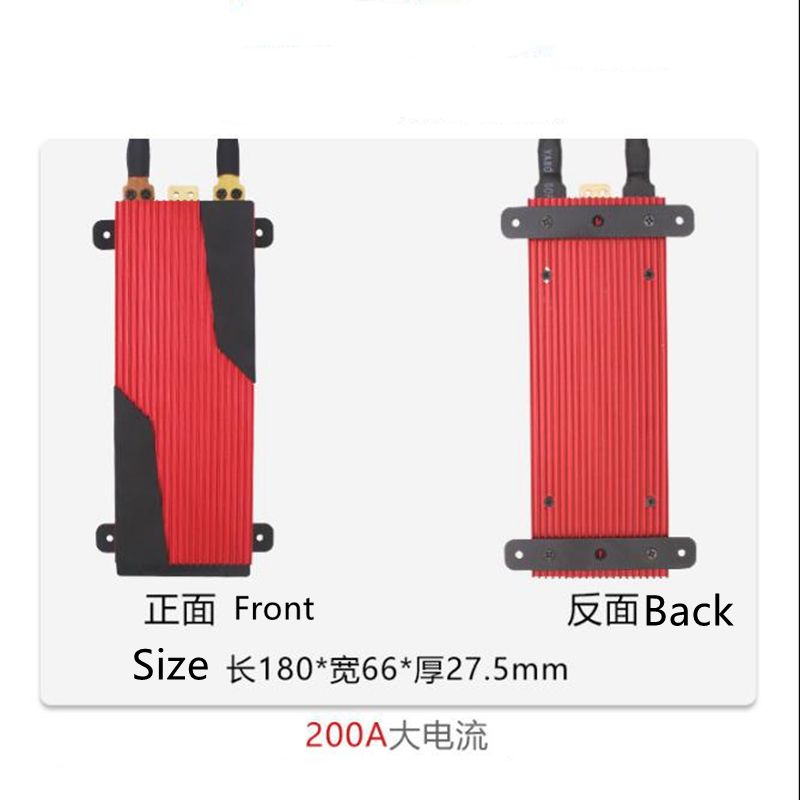

- Size:66mm*180mm*27.5mm
- Charge amp current:200amp
- Over charge/discharge current protection:400amp
- Charge volts:29.2v
- OEM/ODM:Acceptable
- Application:24v 8s lifepo4 battery pack
-
Size Guide
Size Guide
SIZE CHEST WAIST HIPS XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 -
Delivery Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Thembay will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
- Give us a shout if you have any other questions and/or concerns.
- Email: contact@mydomain.com
- Phone: +1 (23) 456 789
-
Ask a Question
Ask a Question
8s 200A BMS 24v With Balance For Lifepo4 Battery Pack
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
Product Description
| Parameters for Life po4 8S BMS | ||||||||
| Discription | Specification | Unite | Remark | |||||
| 80A | 100A | 120A | 150A | 200A | ||||
| Discharge | Contine discharge current | 80 | 100 | 120 | 150 | 200 | A | |
| Discharge Peak current | 220 | 220 | 530 | 530 | 530 | A | ||
| Over current protection | 220 | 220 | 530 | 530 | 530 | A | ||
| Charge | Charge Voltage | 28.8 | V | |||||
| Charge current | 80 | 100 | 120 | 150 | 200 | A | Charge in separate port set as required | |
| Over charge protection | Over charge detect voltage | 3.65±0.025 | V | |||||
| Over charge protection delay | 0.5 | S | ||||||
| Over charge release voltage | 3.6±0.05 | V | ||||||
| Balance | Balance detect voltage | 3.6 | V | |||||
| Balance release voltage | 3.6 | V | ||||||
| Balance current | 35±5 | mA | Balance current35±5mA | |||||
| Over discharge protection | Over discharge detect voltage | 2.5±0.05 | V | |||||
| Over discharge detect delay | 0.5 | S | ||||||
| Over discharge release voltage | 3.0±0.05 | V | ||||||
| Over current protection | Over current detect voltage | 200 | mV | |||||
| Over current detect delay | 9 | MS | ||||||
| Over current protection release condition | Off load | |||||||
| Short circuit protetion | Short circuit protection condition | Short circuit of external load | ||||||
| Short circuit detect delay | 250 | uS | ||||||
| Short circuit protection release condition | Off load | |||||||
| Temp Protection | Temp Protection | NA | ℃ | Set as required | ||||
| Inner resistance | Conductive resistance in main circuit | ≤10 | mΩ | |||||
| Electricity self consume | Working current | ≤40 | uA | |||||
| Sleeping current(battery in discharge) | ≤20 | uA | ||||||
| Work Temp | Temp range | -40 | ℃ | |||||
