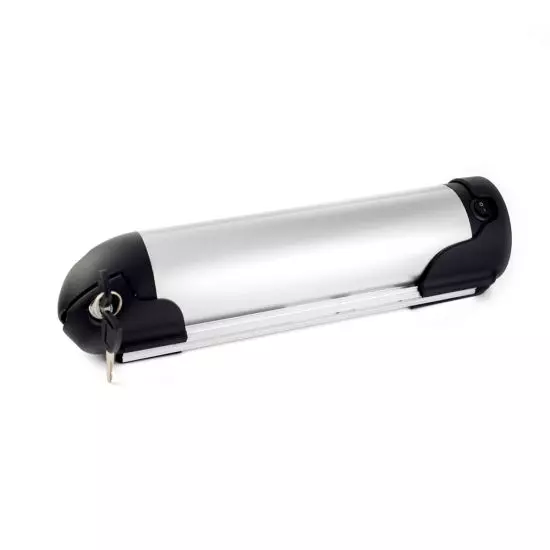

36V10A Lithium Ion Battery for Electric Bike Conversation E-Bike Kits

36V10A lithium ion battery for electric bike conversation e-bike kits

Parameters

Battery Model	36V 12Ah
Nominal Capacity (AH)	12ah
Nominal Voltage (V)	36V
Source Resistance (mΩ)	about 40
Cell Specification	3.6V 2AH
Cell Combination	6P 10S
Cell Size	18650
Cell Quantity (parallel*series)	60
Discharge Cutoff Voltage (V)	30 +/- 1V
Charge Cutoff Voltage (V)	42V
Rated Discharge Current (A)	20A
Instantaneous Maximum Discharge Current (A)	30A
Maximum Continuous Discharge Current (A)	20A
Maximum Continuous Charge Current (A)	5
Charge Mode	CC/CV
Standard Charge Current (A)	2A
Charge Time under Standard Charge Current	6hrs
Fast Charge Current (A)	5A
Charge Time under Fast Charge Current	2.5
Charge Temperature Range	-20 – 60 °C
Discharge Temperature Range	-20 – 60 °C
Battery Size	Length: 385mm Diameter: 102mm
Battery Net Weight	3.5kgs
Battery Gross Weight	5.0kgs

Advantages:

1, Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions .

2, With at least More than 1000times cycle life

3, It can run well under different temperature environment condition

4, No memory effects.

5,Suitable for electric bicycle ,electric bike etc .

6.Full capacity battery, 100% quality testing

7.Long cycle life and high energy density

8, Capacity, resistance, Voltage, platform time consistency is good

9.Factory price and fast delivery

10, Light weight, small size
