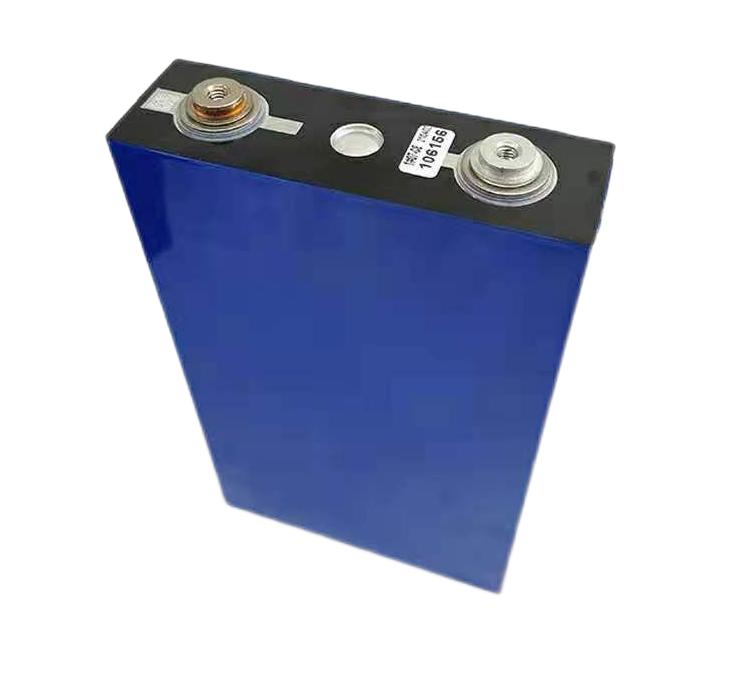

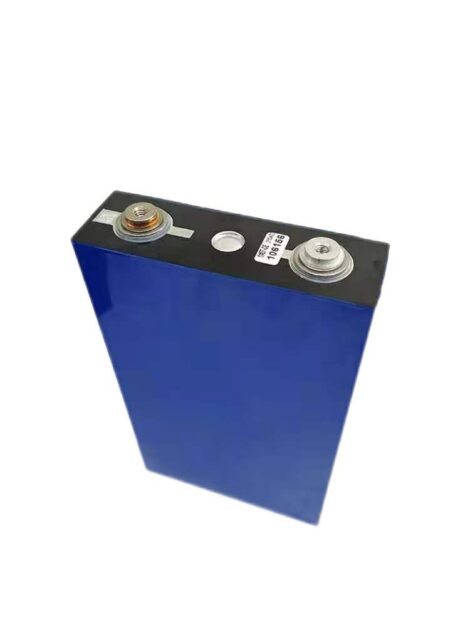

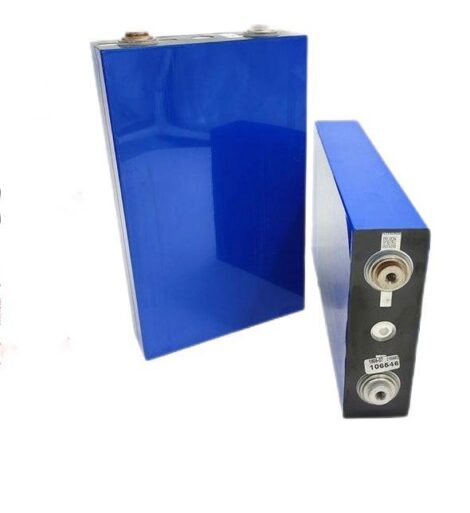

3.2V 100Ah prismatic lifepo4 battery for electric bicycle

Product Details:

Place of Origin: China
Brand Name:
Certification: CE
Model Number: 3.2V 100Ah

Payment & Shipping Terms:

Retail Price: 80 USD
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
  • Size Guide

    Size Guide

    SIZE CHEST WAIST HIPS
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44
  • Delivery Return

    Delivery

    We ship to all 50 states, Washington DC.
    All orders are shipped with a UPS tracking number.
    Always free shipping for orders over US $200.
    During sale periods and promotions the delivery time may be longer than normal.

    Return

    Thembay will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

    Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
    Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

    Help

    • Give us a shout if you have any other questions and/or concerns.
    • Email: contact@mydomain.com
    • Phone: +1 (23) 456 789
  • Ask a Question

Free

Worldwide
Shopping

100%

Guaranteed
Satisfaction

30 Days

Guaranteed
Money Back

Nominal Capacity:100AhNominal Voltage:3.2V
Internal Impedence:≤0.6mΩOperating Votage:2.5V-3.65V
Dimension:220*40.2*130.2mmBattery Weight:2.25±0.50Kg



Product Description


3.2V 100Ah prismatic lifepo4 battery for electric bicycle

Battery Features :

High Energy Density

Long Cycle Life

Easy Connection

High-rate continuous discharge

Good consistency

Environment-Friendly

Applications :

 Solar system

 Energy storage (ESS)

 Electric vehicles

 Golf carts

 RV

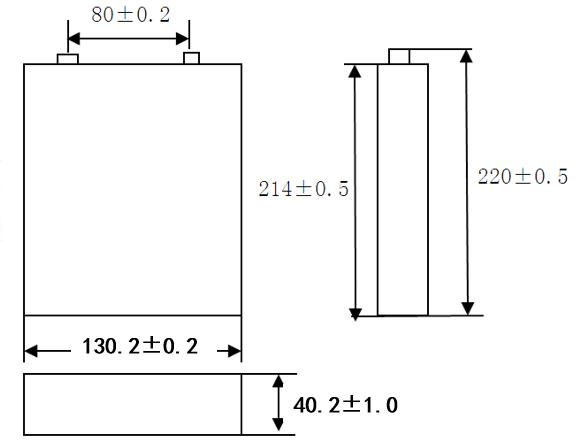

Battery Dimensions

Parameters

Item No.

IFP40130220-100

Nominal capacity

100 Ah

Nominal voltage

3.2V

Typical Energy

300 Wh

Max charger power

300W

Max discharger power

600W(30S)

Discharge cut-off voltage

2.5V

Charge cut-off voltage

3.65V

Operating temperature (charging)

0~45°C

Operating temperature (discharge)

-20~60°C

Weight

2.25±0.50Kg

Storage Temp.

-30~60°C

Typical dimension(W*H*T)

220*40.2*130.2mm

Cycle performance

≥4000Cycles(0.5C)

Bolt

M6

Impedance

≤0.6mΩ
