Port:Shenzhen, China
Production Capacity:10000 PCS/Day
Payment Terms:L/C, T/T, Western Union, Paypal, Money Gram, Escrow
Model NO.:FB-107
Installation:Packaged
Rechargeable:Chargeable
Trademark:Delong
Transport Package:Standard Package
Specification:148*49*270mm
Origin:Guangdong China
HS Code:8501109990
Type:Lithium-Ion Batteries
Usage:Electric Power, Electric Bicycle, Sctoor
Nominal Voltage:24V
Discharge Rate:Medium Discharge Rate
Shape:Square Battery
Electrolyte:Li-ion
Silver fish type Customized:
Capacity: 10Ah, 11Ah, 12Ah13Ah, 14Ah, 15Ah, 17.5Ah, 20Ah, 23Ah, 30Ah
Voltage: 24V, 36V, 48V, 51.2V
Combination: 7S6P/10S8P/13S8P/16S8P/13S10P

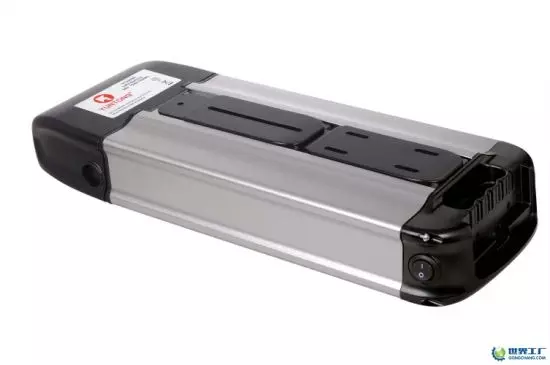

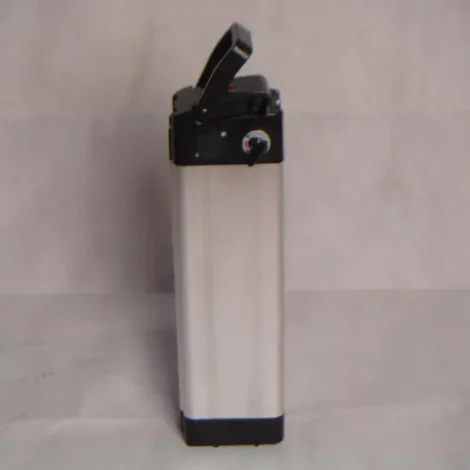

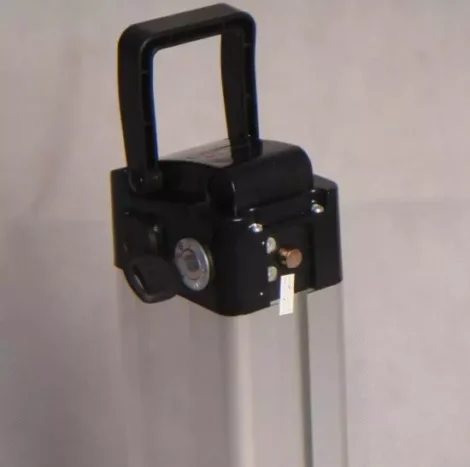

| Item name | E-Bike battery rechargeable lithium battery |
| Battery style | Silver fish 48V 20Ah or customerized |
| Weight | Around 6.5kg |
| Battery material | Lithium ion battery |
| Typical voltage | 48V |
| Full charge voltage | 54.6V |
| Discharge cut-off voltage | 41.6V |
| Rated Capacity | 10ah/12ah/16ah/20ah |
| Charge current | 4A |
| BMS discharge current | 25A |
| Peak discharge current | 50A |
| Impedance | <240mΩ |
| AC input | 100-240V 50/60HZ |
| Inner impedance | ≤100 mΩ |
| Charging methods | CC/CV |
| Cycle life | over 500 times |
| Warranty | 1 year |
| Charging time | Around 5-7 hours |
| Fit motor | 350W 500W 750W 1000W |
| Charging temperature | 0-45 degree |
| Discharging temperature | -20-60 degree |
| Certificates | CE,ROHS IOS9001, MSDS UN38.3 |
| Usage range | EMotorbike,Scooters,Tricycles,Quadrocycles,Motorcycles,Ebicycle etc. |
Application.
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.
