Product details

Port:Shenzhen, China

Production Capacity:5000PCS Per Week

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash

Model NO.:FB-2420

Trademark:Delong electric bicycle battery

Transport Package:EPE Pearl Cotton and Thick Cardboard Cartons

Specification:395*148*80mm

Origin:China

HS Code:8506500000

Type:Battery

Weight:4kg

Cycle Life:500 Cycles

Voltage:24V

Nominal Capacity:2500mAh

Battery Type:18650 Battery

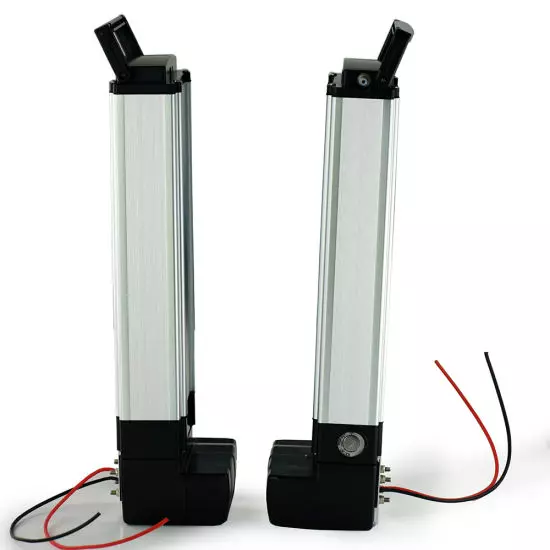

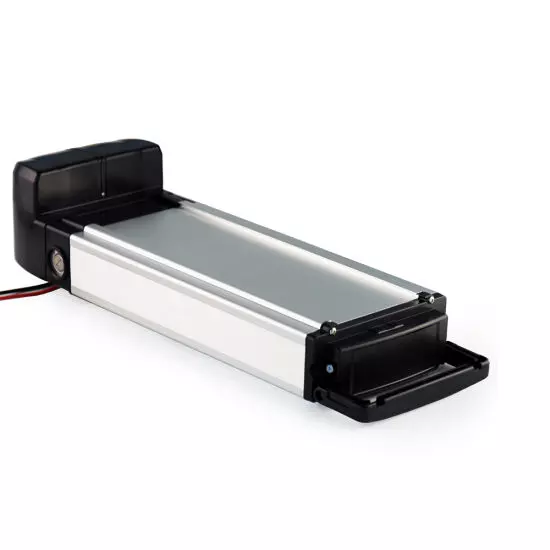

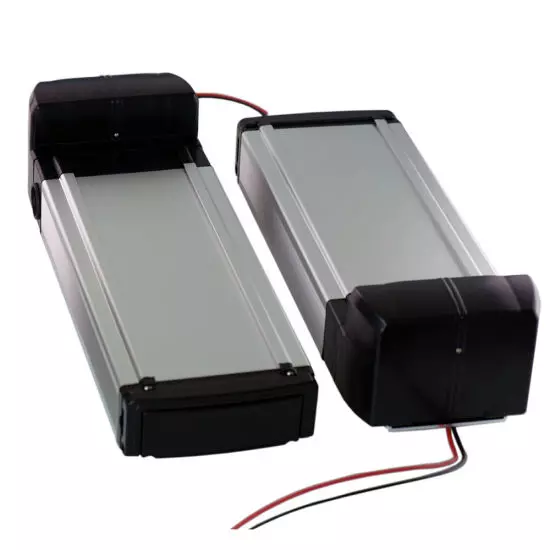

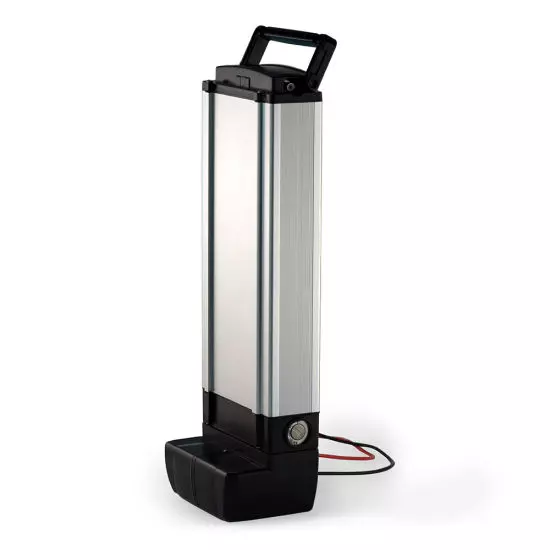

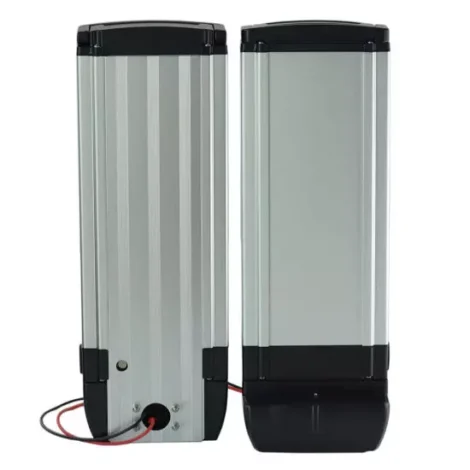

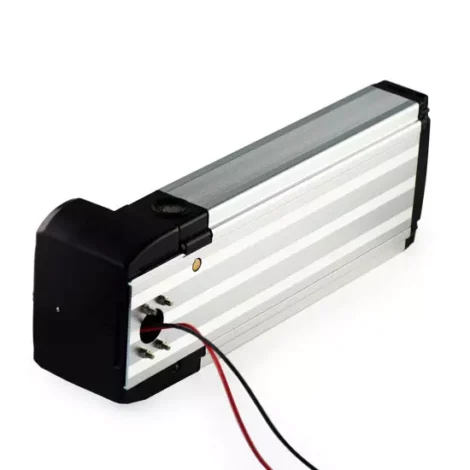

24V 20AH Rechargeable Lithium Ion Battery Pack for 500W Electric Bike

Recommend to use for 36V 200W, 36V 250W, 36V 350W, 36V 500W Motor.

The Battery has fixing plate, if you want to install it on your rear rack, it is very easy, you just need to fix the plate on your rear rack, for example drill holes or with screws, battery will be slide in and locked with key.

Battery Model24V 20Ah
Nominal Capacity (AH)20ah
Nominal Voltage (V)25.2V
Source Resistance (mΩ)< 40
Cell Specification3.7V 2500mAh
Cell Combination8-paralle
6-series
Cell type18650
Cell Quantity (parallel*series)48
Discharge Cutoff Voltage (V)16.8V
Charge Cutoff Voltage (V)25.2V
Rated Discharge Current (A)5A
Instantaneous Maximum Discharge Current (A)30A
Maximum Continuous Discharge Current (A)5A
Maximum Continuous Charge Current (A)2A
Charge ModeCC/CV
Standard Charge Current (A)2A
Charge Time under Standard Charge Current11
Fast Charge Current (A)5A
